Discontinued
Superseded to CLFLE12

Heavy Duty 12,000 lb.Symmetric 2-Post Lift

Item Number: CLFE12 - Supplier: CHALLENGER LIFTS INC

Description

The 12,000 lb. capacity E12 two post lift provides symmetric lifting capability, maximum room to work underneath vehicles and room to grow. It's adjustable height accomodates higher profile vehicles and provides ample headroom for day to day servicing. It's competitive price allows the budget conscious service facility room for expansion.

Other features includ Heavy-Duty 2-Stage arms, automatic arm restraints, rubber protective door guards, single point overhead shut off system, and optional column height extensions. Available in red and blue only.

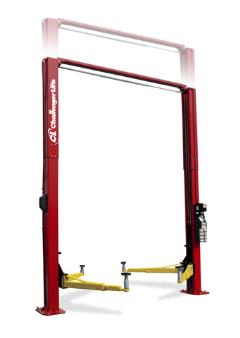

NOTE: Image at left shows lift with 2' height extension option.

Features

  • Heavy-duty 2-stage Telescoping Arms provide excellent reach and retraction to accomodate vehicle lifting points
  • Heavy-duty Telescoping Screw Pads adjust to multiple heights minimizing the need for adapters
  • 13' 10" or 14' 7" adjustable column height accomodates higher profile vehicles and provides maximum headroom to work underneath vehicles
  • Single point mechanical lock release allows technician to disengage both column locks simultaneously
  • Padded overhead shut off system prevents vehicle damage from being raised too high
  • Premium powder coat finish provides long lasting durable finish
  • Rubber door guards provide added security against vehicle door damage
  • Premium powder coat finish provides long-lasting durability
  • Plated Arm Restraints and Arm Pins inhibit rust and provide long-lasting durability
  • ALI / ETL certified

Inlcudes

  • (4) Standard Screw Pads
  • (4) 3" Medium Extensions
  • (2) 6" High Extensions
  • (2) Organizer Racks for adapter extensions
  • (4) Frame Engaging Truck Adapers
  •

Options

CLFE12EH2 2' Column Height Extensions accomodate higher profile vehicles. Includes (2) height extensions, hose extension kit, and new cables.

Warranty

Two years on parts, one year on labor from the date of installation.





Product Specifications

  • Ceiling Height Required w/ 2' Extension: 15' 11" or 16' 8" (4851 mm or 5080 mm)
  • Floor to Overhead Switch w/2' Extension: 15' 3-1/2" or 16' 1/2" (4661 mm or 4890 mm)
  • Adjustable Column Height: 13' 10" or 14' 7"
  • Drive-Thru Clearance: 103" (2616 mm)
  • Floor to Overhead Switch: 13' 3-1/2" or 14' 1/2" (4051 mm or 4280 mm)
  • Rise Height: 78 1/8" (1984 mm)
  • Arm Reach - Minimum: 35-3/4" (910 mm)
  • Speed of Rise: 66 Seconds
  • Max Load per Arm: 3,000 lbs. (1361 kg)
  • Adjustable Column Height w/2' Extension: 15' 10" or 16' 7" (4826 mm or 5055 mm)
  • Lifting Capacity: 12,000 lbs. (5443 kg)
  • Overall Width: 11' 7-3/4" (3550 mm)
  • Voltage: 208V - 230V
  • Arm Reach - Maximum: 54-1/2" (1386 mm)
  • Ceiling Height Required: 13' 11" or 14' 8" (4242 mm or 4470 mm)
  • Screw Pad Height: Adj 5-1/4" - 7-1/4" (133 mm - 184 mm)
  • Adapter Height with 3" Extensions and Screw Pad: Adj. 8-1/4" - 10-1/4" (210 mm - 260 mm)
  • Adapter Height with 6" Extensions and Screw Pad: Adj. 11-1/4" - 13-1/4" (286 mm - 337 mm)
  • Inside of Columns: 115" (2921 mm)
  • Motor: 2 HP, 1 PH, 60 Hz
