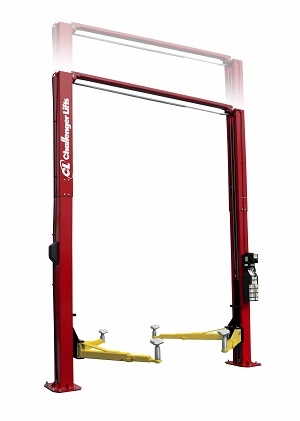

12,000 lb. LE12 2-Post Lift

Description

Challenger's LE Series lifts provide symmetric lifting capability with adjustable height to accommodate higher profile vehicles. The LE12 model features a pulley-less jacketed single-point lock release system designed to last.

Features & Benefits

• ALI certified
• Heavy-duty 2-stage arms enable a wide range of symmetric lifting.
• Single point mechanical lock release allows technician to disengage both columns simultaneously.
• Heavy-duty polyurethane screw pads accommodate wise range of recommended lifting pads.
• Adjustable column height accommodated higher profile vehicles and provides maximum headroom to work underneath vehicles.
• Padded overhead shut off system prevents vehicle damage.
• Power coat finish provides long-lasting durability.
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage.
• Adjustable footpads, stack adapters, and organizer rack come standard.

Warranty

Click here for warranty information.

Product Specifications

• Lifting Capacity: 12,000 lbs. (5,443 kg)
• Overall Height: 166" / 175" (422 cm / 445 cm)
• Min. Arm Reach: 35.75" (910 mm)
• Speed of Rise: 61 sec.
• Arms: 2-stage front / 2-stage rear
• Rise Height: 77.75" (198 cm)
• Floor to Overhead Switch: 159.5" / 168.5" (405 cm / 428 cm)
• Ceiling Height Required: 167" / 176" (424 cm / 447 cm)
• Drive-Thru Clearance: 103" (262 cm)
• Max. Arm Reach: 54.5" (139 cm)
• Inside Columns: 115" (292 cm)
• Std. Motor/Voltage²: 2HP, 208V - 230V
• Lifting Configuration: Symmetric
• Overall Width: 139.75" (355 cm)
• Screw Pad Height (min. / max.): 5.25" / 6.75" (133 mm / 171 mm)
