10K Asymmetric 2-Post Lift w/ Trio Arms & Truck Adapters

Description

Asymmetric two-post lift. For decades, Rotary® has been the recognized leader in vehicle service lifts. This legendary reputation has set the standard for quality, durability, reliability and attention to safety throughout the automotive service market. With Rotary lifts, you have the service and support you need. Our world-wide network of service companies are always standing by.

Most of our lifts are third party tested by ETL and certified by ALI to meet or exceed strict ANSI standards such as cable cut and deformation tests. Be sure the lift you buy has the gold ALI/ETL label that assures your lift has been tested to meet these standards.

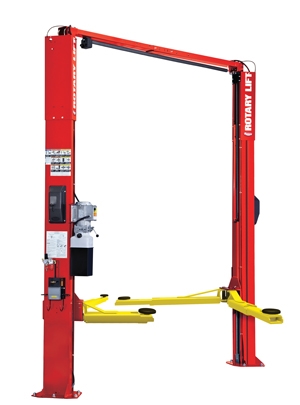

NOTE: Primary image to the left is shown with rubber adapters (ROTSPOA10RTR) instead of the truck adapters.

Features

• Conventional controls located on power unit
• True asymmetrical rotated column design
• Performance tested to 20,000 lift cycles
• ALI Gold Certified

Warranty

One (1) year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)

Product Specifications

• Reach (Front Arm Maximum): 43-1/2" (1105 mm)
• Min. Adapter Height: 4-3/4" (121 mm)
• Motor/Voltage: 2 hp / 208V-230V
• Height overall (Standard): 11' 8-1/2" (3569 mm)
• Drive-through Clearance: 95-1/4" (2416 mm)
• Reach (Front Arm Minimum): 21-3/4"" (552 mm)
• Reach (Rear Arm Maximum): 58" (1473 mm)
• Inside Columns: 107-1/4" (2727 mm)
• Cylinder Height (full rise)*: 11' 10-1/2" (3619 mm)
• Rise*: 71-9/16" (1817 mm) - 82-1/16"" (2084 mm)
• Time of Full Rise / Descent: 45 / 40 Seconds
• Minimum Bay Size: 12' x 24' (3658 mm x 7315 mm)
• Lifting Capacity: 10,000 lbs. (4536 kg)
• Ceiling height required (standard): 12' (3658 mm)
• Reach (Rear Arm Minimum): 34-1/2"" (876 mm)
• Width overall (outside of base plate): 11' 5-3/8" (3489 mm)
• Floor To Overhead Switch: 11' 2-3/4" (3423 mm)
