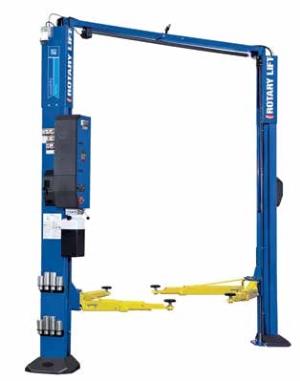

Two-Post Lift withTrio Arms and Shockwave

---

Item Number: ROTSPOA10RTS - Supplier: ROTARY LIFT

Description

SPOA10-RA-TRIO-SW Rotary Lift has updated its most popular above-ground and in-ground automotive lifts with a  new three-staged lift arm.  With a three-sectioned telescoping design, this new lift arm has increased reach and sweep range, accommodating even more vehicle lift points. The lift arm includes Rotary's rubber pad adapters, which are polymer-coated to protect your customers' vehicles from scratches. An adapter extension kit is also available for SUVs and trucks.

2006 TechShop Top 5 Tools Award

Features

• Two-hand operation for raising and lowering vehicles
• Manual, two-hand lock release
• New three-staged front arms and two-stages rear arms for increased reach
• Patented double-S shaped column design for maximum strength and maximum bearing-surface contact
• High-pressure cylinders in both columns for powerful lifting force
• Polymer rubber pad adapters that are vertically adjustable and have stackable inserts for a precise fit.  No metal-to-metal contact
• Slider-block bearings of Tivar® 1000 polyethylene are self-lubricating and maintenance free
• User-friendly arm restraints
• Power unit designed by Rotary®, specifically for lift applications
• Patented (US Patent No 5,009,287) column design.  “Double-S” shape, with single-piece construction to maximize strength and bearing surface area
• High-pressure cylinders in each column provide maximum lifting force
• Overhead padded switch bar prevents damaging vehicles from being raised too high
• Asymmetric, 30° rotated columns provides maximum door-opening clearance for passenger cars, provides improved under-dash access
• ALI and ETL certification
• Equipped with Shockwave
  • 2X faster rise and decent

Includes

• Power unit (operates on 220-volt, single-phase power)

• Patented column design
• Maintenance-free bearings
• Lifting cylinders in each column
• Overhead cut-off switch
• Polymer adapters
• Trio Three-stage arm design

Accessories

• ROTN823          Door defender™prevents door dings

• ROTFJ7880      Adapter extension kit for SUVs and trucks

• ROTTPP           Three-phase power motor

Warranty

One year for parts and labor.  Additional one-year parts warranty if installed by a Rotary-Authorized Installer (RAI)

Product Specifications

• Time of Full Rise: 25 / 19 Seconds
• Drive-Thru Clearance: 95 1/4" (2416 mm)
• Minimum Adapter Height: 4-1/16"
• Motor / Voltage: 5 HP / 110, single-phase
• Overall Width: 11' 5-3/8" (3489 mm)
• Capacity: 10,000 lbs. (4536 kg)
• Rise: 75-1/16" - 76-5/16"
• Height Overall (Standard): 11' 8-1/2" (3569 mm)
• Floor to Overhead Switch: 11' 2-3/4" (3423 mm)
• Reach (Front Arm Minimum): 20-1/2" (521 mm)
• Reach (Front Arm Maximum): 40-3/4"
• Reach (Rear Arm Minimum): 34-1/2" (876 mm)
• Reach (Rear Arm Maximum): 58-1/4" (1480 mm)
• Maximum Adapter Height: 5-1/4" (133 mm)
• Ceiling Height Required: 12' (3658 mm)
• Minimum Bay Size: 12' x 24' (3658 mm x 7315 mm)
