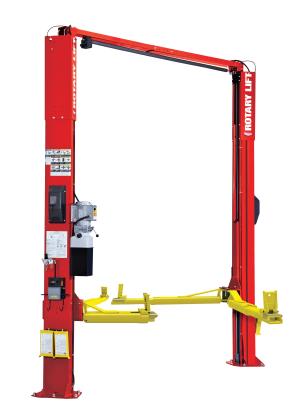

10K Asymmetric 2-Post Lift w/ Trio Arms & Flip Adapters

---

Item Number: ROTSPOA10FTR - Supplier: ROTARY LIFT

Description

Asymmetric two-post lift. For decades, Rotary® has been the recognized leader in vehicle service lifts. This legendary reputation has set the standard for quality, durability, reliability and attention to safety throughout the automotive service market. With Rotary lifts, you have the service and support you need. Our world-wide network of service companies are always standing by.

Most of our lifts are third party tested by ETL and certified by ALI to meet or exceed strict ANSI standards such as cable cut and deformation tests. Be sure the lift you buy has the gold ALI/ETL label that assures your lift has been tested to meet these standards.

Features

• Conventional controls located on power unit
• True asymmetrical rotated column design
• Performance tested to 20,000 lift cycles
• ALI Gold Certified

Warranty

One (1) year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)

Product Specifications

• Rise*: 72 3/4" (1848 mm) - 78 1/4" (1987 mm)
• Reach (rear arm maximum): 61" (1548 mm)
• Inside Columns: 107-1/4" (2727 mm)
• Cylinder Height (full rise)*: 11' 10-1/2" (3619 mm)
• Time of Full Rise / Descent: 45 / 40 Seconds
• Minimum Bay Size: 12' x 24' (3658 mm x 7315 mm)
• Low Step Height: 7" (178 mm)
• Lifting Capacity: 10,000 lbs. (4536 kg)
• Ceiling height required (standard): 12' (3658 mm)
• Reach (rear arm minimum): 40 1/4" (1019 mm)
• High Step Height: 10 1/4" (260 mm)
• Width overall** (outside of base plate): 11' 5-3/8" (3489 mm)
• Floor To Overhead Switch: 11' 2-3/4" (3423 mm)
• Reach (front arm maximum): 40-3/4" (1036 mm)
• Min. Adapter Height: 4-3/4" (121 mm)
• Motor/Voltage: 2 hp / 208V-230V
• Height overall (Standard): 11' 8-1/2" (3569 mm)
• Drive-through Clearance: 95-1/4" (2416 mm)
• Reach (front arm minimum): 24" (610 mm)
