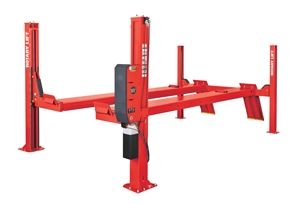

14,000 lb. 4-Post, Standard, Open Front with SHOCKWAVE

Item Number: ROTSMO14LSW - Supplier: ROTARY LIFT

Description

14,000 lb. open front / rear, four-post lift with a maximum wheelbase of 192-1/2" and an overall length of 22'

Maximize your productivity by using the lift that's right for you. We offer more productivity features than anyone in the industry. More importantly, our lifts are designed to meet our exceed strict ANSI standards and go through rigorous safety tests such as a 1.5 times rated capacity test, lock test by cutting the cables, and deformation tests. With our attention to detain and innovation, there is no other four-post on the market that matches Rotary 's quality and value.

Features

  • Higher Rise to Over 78"
    • Provides more work area under the vehicle
  • Powder Coated Hammer Tone Paint Finisher
    • Improves durability and paint life
  • Louvered Ramps with Polymer Rollers
    • Provides improved traction and less floor gouging when driving to the lift
  • Patented Dual Function Sentinel Lock™ System
    • Features a slack cable guide arm that stays "on guard to manage the lock latch. Ina stack cable situation, the lock system kicks the lock into position. Fewer parts means less opportunity for service issues and more peace of mind
  • Adjustable Latch Bars
    • Ensures the runways are level when resting on the latch bars at any of the multiple locking positions
  • Improved Hydraulic and Mechanical Lifting System Design
    • Concealed and protected under the runway, high performance cables and sheaves generate greater durability and  a more efficient and dependable lift operation
  • Redesigned Taller Yokes
    • With the articulating blocks, the yokes hold the roller pins evenly to distribute load on the rollers, leading to longer life for rollers and bearings
  • Filter/Regulator/Lubricator
    • For clean, lubricated air which will extend the life of your lift and air powered tools
  • Equipped with SHOCKWAVE
    • 2X faster rise and descent

Warranty

One year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)

Product Specifications

  • Between Front and Rear Columns: 194-3/4" (4946 mm)
  • Height of Runways: 7" (178 mm)
  • Time of Full Rise (Seconds): 35 for Rise / 18 for Descent
  • Minimum Bay Size: 15' x 26' (4572 x 7925 mm)
  • Height of Columns: 9' 1-1/16" (2770 mm)
  • Maximum Wheelbase: 182" (4622 mm)
  • Rise / Floor to Top of Runway: 78-3/4" (2000 mm)
  • Length Overall: 21' 1" (6426 mm)
  • Width Overall : 11' 8-1/2" (3568 mm)
  • Inside of Columns: 116-1/4" (2953 mm)
  • Width of Runways: 20" (508 mm)
  • Width Between Runways: 43" (1092 mm)
  • Lifting Capacity: 14,000 lbs. (6350 kg)
  • Motor: 5 HP
  • Voltage Single Phase: 110V
