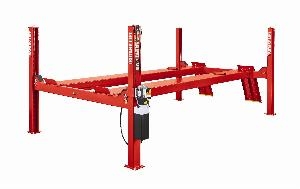

14,000 lb. Four-Post Lift, Closed Yoke - 22' 9" Long

Item Number: ROTSM14EL2 - Supplier: ROTARY LIFT

Description

14,000 lb. closed yoke, four-post lift with a maximum wheelbase of 182-1/2" and an overall length of 20'9"

Maximize your productivity by using the lift that's right for you. We offer more productivity features than anyone in the industry. More importantly, our lifts are designed to meet our exceed strict ANSI standards and go through rigorous safety tests such as a 1.5 times rated capacity test, lock test by cutting the cables, and deformation tests. With our attention to detain and innovation, there is no other four-post on the market that matches Rotary 's quality and value.

Features

  • Higher Rise to Over 78"
    • Provides more work area under the vehicle
  • Powder Coated Hammer Tone Paint Finish
    • Improves durability and paint life
  • Louvered Ramps with Polymer Rollers
    • Provide improved traction and less floor gouging when driving on the lift
  • Patented Dual Function Sentinel Lock™ System
    • Features a slack cable guide arm that stays "on guard" to manage the lock latch. In a slack cable situation, the lock system kicks the lock into position. Fewer parts means less opportunity for service issues and more peace of mind
  • Adjustable Latch Bars
    • Ensures the runways are level when resting on the latch bars at any of the multiple locking positions
  • Improved Hydraulic and Mechanical Lifting System Design
    • Concealed and protected under the runway, high performance cables and sheaves generate greater durability and a more efficient and dependable lift operation

Options

  • ROTRJ7000   7,000 lb. Rolling Jack

Warranty

One year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)

Product Specifications

  • Rise / Floor to Top of Runway: 78-3/4" (2000 mm)
  • Runway Length: 19' 4" (5893 mm)
  • Inside of Columns: 116-1/4" (2953 mm)
  • Width Between Runways: 43" - 46" (1092 mm - 1168 mm)
  • Voltage Single Phase: 208V - 230V
  • Minimum Bay Size: 15' x 26' (4572 x 7925 mm)
  • Lifting Capacity: 14,000 lbs. (6350 kg)
  • Width Overall : 11' 11-3/4" (3346 mm)
  • Height of Runways: 7" (178 mm)
  • Width of Runways: 20" (508 mm)
  • Length Overall: 23' 7" (7188 mm)
  • Time of Full Rise: 65 seconds
  • Height of Columns : 7' 6-1/2" (2299 mm)
  • Maximum Wheelbase: 215" (5461 mm)
  • Rise: 73-3/4" (1873 mm)
  • Between Front and Rear Columns: 228-1/4" (5798 mm)
  • Motor: 2 HP
