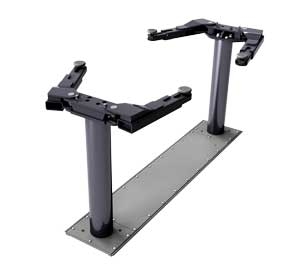

SLW210-RA 10K SMARTLIFT Wide Inground Lift, Round Adapters

Item Number: ROTSLW210IN0G0 - Supplier: ROTARY LIFT

Description

Rotary's SMARTLIFT WIDE inground lift design is perfect for servicing all vehicle types including electric cars and trucks. The obstruction-free, wide design provides greater under vehicle access and reduces the risk of contact between the lift and vehicle parts.

Features

  • Lifting Versatility with Next-Level Service
    • BEV battery removal - wide plungers open the access for removal of underbody covers and electric vehicle batteries.
    • Service low profile exotic cars
    • Remove truck bodies off frames
  • Space-saving footprint creates greater vehicle access while working around the lift.
  • One Touch Controls, compact and ideal for mounting in work benches.
    • Includes Liquid Detection System (LDS).
  • Environmentally responsible
    • Self-contained mechanical, hydraulic and electrical components
  • Proven SMARTLIFT Technology
    • Rod seal cylinders that do not exchange air with containment
    • All hydraulic and air components serviceable without plunger removal
    • Polymer molded containment won't degrade
  • Patented Trio Arms®
    • Low profile arms improve clearance and reduce risk of vehicle damage.
    • Two-piece multiple adjustment arm design equals faster spotting speed with greater reach, interchangeable with adapter options (FA, RA, TA).
    • Allows for Quick positioning of the adapter to the vehicle pickup points without moving heavy arms
    • Integrated adjustment easily slides the adapter to the vehicle contact location saving technicians additional set-up time
  • Available in red, blue, or black - must specify color at time of order.

Includes

  • Patented TRIO arms
  • Multi-position wheel spotting dish
  • RA round rubber adapters

Warranty

One year labor, two years parts when installed by Rotary authorized installer.

Product Specifications

  • Lifting Capacity: 10,000 lbs.
  • Minimum Arm Reach: 19-11/16"
  • Maximum Arm Reach : 44-1/2"
  • Rise / 71" Cylinder Stroke: 75-3/16" - 76-3/8"
  • Width Overall : 119-5/8"
  • Drive-Thru Clearance: 88-1/16"
  • Minimum Adapter Height: 4-1/4"
  • Ceiling Height Minimum: Equals rise with tallest adapter extensions plus height of the vehicle
  • Voltage: 208-230V
  • Electrical Usage Ø: .01kWh per cycle
  • Guide Plunger Diameter: 8-1/2"
  • Time of Full Rise / Decent: 53 Seconds / 24 Seconds
  • Minimum Bay Size: 11' x 24' (3353 X 7315 mm)
