Discontinued
Superseded to ROB34788NI

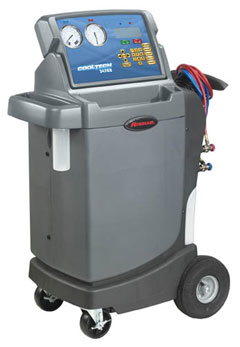

R134a Air Con Recv Recyc Rechg - DEDICATED


Item Number: ROB34788 - Supplier: BOSCH AUTOMOTIVE SERVICE SOLUTIONS

Acceptable for use as a dedicated unit to service the Kia Hybrid.  At the time of dedication to support PVE/POE lubricants only, the RRR machine must be new and unused to avoid system contamination. Please refer to Kia TSB (CLI017) found on www.KiaTechInfo.com.

Description

The Cool-Tech combines simple operation with superior accuracy.  It recovers, recycles, evacuates, leak tests, and recharges R-134a quickly and accurately.  Fully automatic function lets you recover, vacuum, leak test, charge, and then walk away.  Monitors the vacuum level after an evacuation, and informs the technician of a possible leak in the vehicle's A/C system.  The unit maintains a user selectable amount of refrigerant in an internal vessel, and signals when it's time to change the supply tank.  Eliminates damaging air without any monitoring of gauges or opening of valves.  Automatically drains system oil captured during recovery, and the display reminds you to empty the bottle.  Graduations on the container clearly show you how much oil needs to be replaced.

Features

  • Vacuum leak test
  • Automatic refrigerant refill
  • Automatic air purge
  • Automatic oil drain
  • Refrigerant charging
  • Refrigerant management
  • Vacuum function
  • Meets SAE J-2197 standard

Includes

  • Filter-Drier
  • Maintenance kit
  • Calibration weight
  • Service coupler set (high and low side couplers
  • Service hose set (high and low side hoses)

Accessories

  • Vacuum pump oil

Warranty

One year.  This warranty does not apply if:  The product, or product part, is broken by accident.  The product is misused, tampered with, or modified.  The product is used for recovering or recycling any substance other than the specified refrigerant type.  This includes, but is not limited to, materials and chemicals used to seal leaks in A/C systems.

Product Specifications

  • Recycling filter-drier: 43 cu. in. spin-on type
  • Operating range: : 11° to 49° C (50° to 120°F)
  • Pump free air displacement: 3 cfm (142 L/min)
  • Shipping Weight: 235 lbs.
  • Voltage: 115V 60 Hz
  • Dimensions: 44"H x 34"W x 23"D
  • Refrigerant container on-board: 30 lb. vessel (source tank not included)
