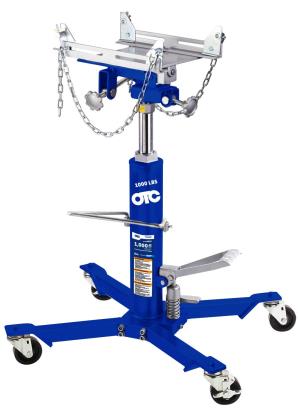

1,000 lb Capacity High-Lift Transmission Jack

---

Item Number: OTCTJH10 - Supplier: BOSCH AUTOMOTIVE SERVICE SOLUTIONS

Description

High-lift transmission jack with universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load.

Features

• Universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load
• Head tilts front to back and side to side to make removal and installation of transmission and driveline components easier
• Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life
• Foot-operated pump and lowering pedal allow for ease of control when positioning or removing a transmission
• Specially designed with a wide leg base and 4" polyurethane swivel wheels for stability and easy maneuvering
• Built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use
• Ideal size and capacity for the removal and installation of automobile transmissions

Includes

• Hydraulic assembly
• Saddle assembly
• Legs, Qty 2
• Casters, Qty 4
• Handle
• Hardware box
• Operating instructions

Warranty

OTC Lifetime Warranty

WARNING: This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.

Product Specifications

• Capacity: 1,000 lbs.
• Minimum Height, Retracted: 35"
• Maximum Height: 71-5/8"
• Forward Tilt (Maximum): 24°
• Backward Tilt (Maximum): 19°
• Side Tilt (Maximum side to side): 20°
• Leg WIdth: 37-18"
• Wheel Size: 4"
• Dimensions: 37" × 22.5" × 7.7"
• Weight: 158 lbs.
