Power Supply Charger with 2 Meter Charge Cable

---

Item Number: MTRMSP0702 - Supplier: MIDTRONICS INC

Description

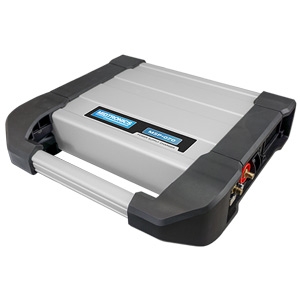

The Midtronics MSP-070 Power Supply Charger provides clean, reliable power for charging and maintaining battery state-of-charge during service reflash, complex maintenance, and in the showroom.

Features

• Selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for standard lead-acid, AGM, and EFB battery types
• Avoid potential battery damage from drain during vehicle service
• Maintain vehicle electronic and accessory settings
• Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction
• Certifications: UL, FCC, CEC (California), CUL, CE, RoHS
• Low profile to fit under vehicles
• Dynamic internal fan control offers quiet operation
• Reverse polarity protection
• Clamp disconnect detection
• Circuit breaker for DC output protection
• Clamp high temperature detection
• Input surge protection
• Power factor correction

Includes

• Power supply charger
• AC power cord
• 2m field-replaceable charge cables, MTRA680

Warranty

One year

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. . For more information go to www.P65Warnings.ca.gov



Product Specifications

• Output: 14.4 VDC; 70A maximum
• Operating temperature range: 32°F to +140°F (0°C to +60°C)
• Storage temperature range: 14°F to 185°F (-10°C to +85°C)
• Humidity: 15% to 18% RH, non-condensing
• Height: 3.40" (86.36 mm)
• Width: 10.24" (260 mm)
• Length: 15.35" (390 mm)
• Weight without cables: 15.55 lbs (7.05 kg)
• Weight with cables: 19.43 lbs. (8.78 kg)
• Input voltage: 110-240VAC; 50-60 Hz; 12A max
