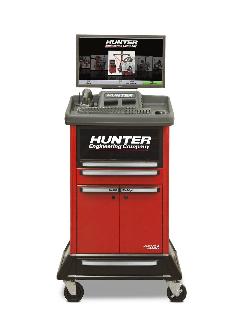

WA400 Series Premium Aligner, Compact Cabinet 24" Monitor

Description

Hunter’s WA400 series premium alignment systems include powerful Intel® processors, running Hunter's latest patented version of WinAlign® alignment software on a Windows® 7 operating system. A full range of cabinet and widescreen display configurations are available to address floor space, work style and other considerations.

Features

• VIN bar code scanning instantly recalls vehicle-specific alignment specifications and alignment reference tools.
• CodeLink® directly "links" the vehicle OBD-II to the aligner to reset steering system sensors, as required by the manufacturer.
• Console design allows for integrated storage and charging for popular accessories.
• TPMSpecs™ software presents thousands of TPMS reset procedures in a comprehensive, tech-friendly format.
• TouchRemote® features allows you to operate WinAlign using your Apple iPhone, iPod touch and iPad (requires free app from iTunes®).
• Drive-on camera (sold separately) allows you to safely and easily position a vehicle on a lift with one technician.

• Detailed color printouts help explain needed parts and repairs and document completed work.

Includes

• Keyboard and mouse
• Steering wheel holder
• Brake pedal depressor
• Wireless remote
• Power Line Filter
• Wireless Codelink
• Barcode Reader

Accessories

SENSOR OPTIONS:

HUNHE421FC   HE421FC Sensors: Suitable for most installations. Patented fixed camera configuration.
HUNHE421WM   HE421WM Sensors-Suitable for most installations. Wall mounted for straight or angled (herringbone) approach bays (may also be ceiling mounted). Patented fixed camera configuration.
HUNHE421ML  HE421ML Sensors-A manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.
HUNHE421FM  HE421FM Sensors-Floor mounted overhead camera configuration suitable for drive through. Patented fixed camera configuration.
HUNHE421CM4  HE421CM Sensors–Portable cabinet mount sensors mount to a WA400 large cabinet & may be rolled from bay to bay. A manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.
HUNHE421CM4B  HE421CM Sensors–Black in color. Portable cabinet mount sensors mount to a WA400 large cabinet & may be rolled from bay to bay. A manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.
HUNHE421CM3  HE421CM Sensors–Portable cabinet mount sensors mount to a WA400 compact cabinet & may be rolled from bay to bay. A manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.
HUNHE421CM3B  HE421CM Sensors–Black in color. Portable cabinet mount sensors mount to a WA400 compact cabinet & may be rolled from bay to bay. A manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.
HUNHE421LC  HE421LC Sensors-An electrically operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor.

ALIGNMENT ACCESSORIES:

HUN2021841  Wall Mount Extensions.  Increases by up to 25-1/2" a standard HUNHE421WM.
HUN2025211  Adjustable Tire Hooks. Includes (8) adjustable tire hooks LF-214-138-1, LR-214-140-1, RF-214-139-1, RR-214-141-1 which may be used with QuickGrip adaptors & Three Dimensional TD Targets.
HUN2025281  QuickGrip Storage Brackets. Includes (4) each storage brackets & hardware for storing QuickGrip adaptors & Three Dimensional targets. These brackets may be mounted to cabinets, sensor columns or racks.
HUN2025771  TD Target to SCA Adaptor Kit (for Wheel Off Adjustments). Includes (2) adaptors which mount Three Dimensional targets to the 20-1978-1 Wheel Off Adaptor Kit (sold separately).
HUN2025631  Protective Ring Replacement Kit for QuickGrip Wheel Adaptors. Includes (4) protective rubber rings.
HUN2025641  Protective Ring Replacement Kit for QuickGrip Wheel Spacers. Includes (4) protective rubber rings.
HUN2025521  Roll Around Storage Carts for storing QuickGrip Adaptors & Three Dimensional Targets. Includes (2) carts. Carts hold 2 COA adaptors each. (does not include QuickGrip Storage Bracket kit 20-2528-1, sold separately).

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Power Requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
• Processor: Intel Core i3 - 3.3 Ghz (or greater)
• Memory : 4 GB DDR3 SDRAM
• Hard Drive: 120.0 GB SSD (or greater)
• DVD-RW/CD-RW Drive: Yes - Standard
• Monitor Class: 24" Widescreen LCD
• Wireless Network Module: Yes - Standard
• Operating System: Windows 7
• Supports TD Targets: Yes - Standard
• Supports HD Targets: Yes - Standard
• Large Console with Drawers: Yes - Standard
• Award-Winning WinAlign Software: Yes - Standard
• Vehicle Specifications (30 plus years): Yes - Standard - 2 Years Free Updates
• CodeLink Steering System Reset: Yes - Standard
• Vin Barcode Reader : Yes - Standard
• Complete TPMS Reset Database: Yes - Standard
• Live Ride Height Adjustment: Yes - Standard
• Fully Integrated Alignment: Yes (FIA Equipped Rack Required)
• Modified Vehicle Alignment: Yes - Standard with WinAlign Tuner
• Vehicle Inspection with Photos: Yes - Standard
• Tools and Kits - Basic Catalog: Yes - Standard
• Tools and Kits - Video and Photos : Yes - Standard
• Equipment Video Help / Assistance: Yes - Standard
• HunterNet featuring WebSpecs: Yes - 2 Years Free Standard
• Training and Productivity Aids: 4,000+ Photos, 1,600+ Illustrations, 400+ Videos and Animations
• Supports TouchRemote: Yes - Standard
• Steering Wheel Holder : Yes - Standard
• Compact Console with Printer Drawer: Yes - Standard
• Console-Top Storage And Charging: Yes - Standard
• Color Ink Jet Printer: Yes - Standard
• Brake Pedal Depressor: Yes - Standard
• Wireless Remote: Yes - Standard
• Power Line Filter: Yes - Standard
• Drive-on Camera Compatible: Yes - Standard
• LCD : 24 in. Wide-screen
• Width (W): 32 in. (813 mm)
• Height (H): 65.5 - 68.5 in. (1664 - 1740mm)
• Depth (D): 23.5 in. ( 597 mm)
• Shipping Weight: 300 lbs. (136 kg.)
