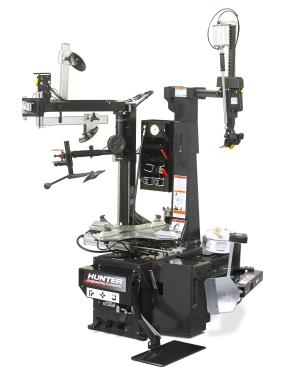

Leverless Table-top Tire Changer Black with Wheel Lift

Item Number: HUNTCX57WBLK - Supplier: HUNTER ENGINEERING COMPANY

Description

The Hunter TCX57WBLK leverless conventional tire changer combines traditional design elements with advanced capabilities to provide superior service with simple operation.  The TCX57WBLK comes with a wheel lift unlike the TCX57BLK. The leverless tire changer provides superior tire changing capabilities. The TCX57WBLK features a swing-arm mounting apparatus and a tabletop clamping system familiar to most technicians. The leverless tool head lessens the stress on the operator and eliminates potential damage to beads and rims.  The TCX57WBLK is simply a black colored version of the TCX57W.

Features

  • Bead Press System
    • Tremendous power and control
    • Aids mounting and demounting
    • Auto-centering simplifies operation
  • Swing-Arm Column
    • Saves space over tilt-column designs
    • Locks rim diameter and width measurements for same-sized wheels
  • Locking Lower Arm
    • Helps demount heavy and difficult tires
    • Assists match-mounting
  • Tabletop Clamp
    • 6-30 in. clamping range
    • Measurement marks ease clamping
    • Twin-cylinder actuators exert more clamping force than single cylinder designs
  • Wheel Lift Option
    • Eases servicing of large assemblies
  • Motor and Drive
    • Powerful 220V high-torque motor
    • Two-speed forward drive
  • PowerOut Bead Loosener
    • Fingertip control makes large assembly service easy
  • Leverless Tool Head
    • Lifts bead without use of levers
    • Relieves bead stress
    • Traditional head option

Includes

  • Bead Press System (BPS) with:
    • Primary traveling arm
    • Fold-away fixed arm
    • Pressing cones (standard and light)
    • Pressing cone extension
    • Demount disc
  • Jaw extension / reducers
  • Standard bead lever and bead lever polymer protectors
  • Shovel protectors (polymer)
  • Hi-grip jaw protectors
  • Wheel Lift

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Power Requirements: 220V, 1 ph, NEMA plug type L6-20P
  • Air pressure operating range: 110-145 psi
  • Air Volume of Inflation Tank: 4.75 gallons
  • Table Rotation Speed: CW - 7 rpm and 17 rpm CCW - 7 rpm
  • Tire Diameter: 43.3 in.
  • Rim width maximum: 14.5 in.
  • Bead Loosener Width: 17 in.
  • Shipping weight: 1,204 lbs.
  • Maximum Space Dimensions: 60 in. (W) x 82 in. (H) x 48 in. (D)
