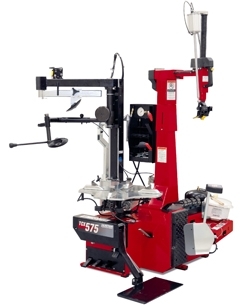

Electric Leverless TireChanger Bead Press System w/wheel lift

Item Number: HUNTCX575W - Supplier: HUNTER ENGINEERING COMPANY

Description

The Hunter TCX575 leverless conventional tire changer combines traditional design elements with advanced capabilities to service everything from simple steel wheels to challenging low-profile tires on large-diameter rims.

Design and Features:

  • Leverless Tool Head – Operates with one switch to smoothly insert itself and lift the bead over the rim edge effortlessly. The elimination of bead levers lessens the stress on the operator and prevents potential damage to beads and rims
  • Bead Press System – System includes multiple pressing arms and a locking lower roller disc arm to aid in clamping, lubricating, demounting and mounting difficult wheels. The wheel press arms simplify external clamping and aid in blocking and pressing stiff low-profile tire beads into deep drop-center wheels. The locking lower arm helps lift heavy tires during demounting and holds tires in place while spinning the rim to complete match-mounting service
  • Locking Lower Arm – Aids in demounting heavy and difficult tires, assists match-mounting
  • Powerful 220V Motor and Unique Two-speed Drive System – Operates at a low speed with increased torque to prevent damage to wheels and tire beads when servicing tough combinations
  • Automatic Swing-Arm - Saves space over tilt-column designs. With the push of a button, the swing arm locks to preset wheel diameter and width positions to speed service of same-size wheels
  • Tabletop Design - Allows easy access to the bottom bead while ensuring rigidity for large diameter wheels
  • Twin-cylinder Tabletop Clamping System – Handles 12 to 30 inch wheels and adjusts to two work positions
  • PowerOut Bead Loosener – Fingertip control makes large assembly service easy, three-way adjustable shovel angle, smoothly pulls tire out of stuck beads, saves time in positioning
  • Wheel Lift - eases servicing of large assemblies and allows for more careful handling of expensive wheels

Includes
  • Bead Press System (BPS) including:
    • Primary travel arm
    • Secondary fixed arm
    • Pressing cones (standard and light)
    • Pressing cone extension
    • Lifting disc
  • 6" Clamping Jaw Extensions
  • (1) Standard Bead Lever and Bead Lever Polymer Protectors
  • Shovel Protectors (polymer)
  • Clamping jaw protectors (polymer)

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

NOTE: Some dimensions, capabilities, and specifications may vary depending on tire and wheel configurations or options.

Product Specifications

  • Electrical: 220V, 6A, 1ph, NEMA plug type L6-20P
  • Air Pressure Operating Range: 110 - 145 p.s.i.
  • Air Volume of Inflation Tank: 4.75 gal.
  • Table Rotation Speed - Electric Motor: CW - 7 r.p.m. and 17 r.p.m.; CWW - 7 r.p.m.
  • Tire Width Max - Table in Lowered Position: 14.3" @ 23" Height
  • Tire Width Max - Table in Raised Position: 12.8" @ 26.6" Height
  • Wheel Clamping - External Clamping (min-max): 12" - 24"
  • Wheel Clamping - Internal (min-max): 14" - 28"
  • Wheel Clamping - Max (with extension jaws, included): 30"
  • Tire Diameter: 43.3" with BPS
  • Max Space Dimensions: 60" W x 82" H x 48" D
  • Weight: 1137 lbs.
