Discontinued

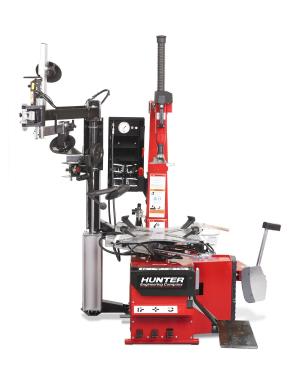

Table-top Tire Changer with Wheel Lift

Item Number: HUNTCX56W - Supplier: HUNTER ENGINEERING COMPANY

Description

The Hunter TCX56W conventional tire changer combines traditional design elements with advanced capabilities to provide superior service with simple operation. The tire changer provides superior tire changing capabilities. The TCX56W features a swing-arm mounting apparatus and a tabletop clamping system familiar to most technicians.  The TCX56W comes with a wheel lift unlike the TCX56. The TCX56W also has the choice of a polymer or steel traditional tool head.

Features

  • Bead Press System
    • Tremendous power and control
    • Aids mounting and demounting
    • Auto-centering simplifies operation
  • Swing-Arm Column
    • Saves space over tilt-column designs
    • Locks rim diameter and width measurements for same-sized wheels
  • Locking Lower Arm
    • Helps demount heavy and difficult tires
    • Assists match-mounting
  • Tabletop Clamp
    • 6-30 in. clamping range
    • Measurement marks ease clamping
    • Twin-cylinder actuators exert more clamping force than single cylinder designs
  • Wheel Lift Option
    • Eases servicing of large assemblies
  • Motor and Drive
    • Powerful 220V high-torque motor
    • Two-speed forward drive
  • PowerOut Bead Loosener
    • Fingertip control makes large assembly service easy
  • Leverless Tool Head
    • Lifts bead without use of levers
    • Relieves bead stress
    • Traditional head option

Includes

  • Bead Press System (BPS) with:
    • Primary traveling arm
    • Fold-away fixed arm
    • Pressing cones (standard and light)
    • Pressing cone extension
    • Demount disc
  • Jaw extension / reducers
  • Standard bead lever and bead lever polymer protectors
  • Shovel protectors (polymer)
  • Hi-grip jaw protectors
  • Wheel Lift

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Table Rotation Speed: CW - 7 rpm and 17 rpm / CCW - 7 rpm
  • Tire Diameter: 43.3 in
  • Rim width maximum: 14.5 in.
  • Bead Loosener Width: 17 in.
  • Maximum Space Dimensions: 60 in. (w) x 82 in. (h) x 48 in. (d)
  • Power Supply Req.: 220V, 1ph, NEMA plug type L6-20P
  • Air Pressure Operating Range: 110-145 psi
  • Air Volume of Inflation Tank: 4.75 gallons
  • Weight: 1150 lbs.
  • Dimensions: 75"x45"x50"
