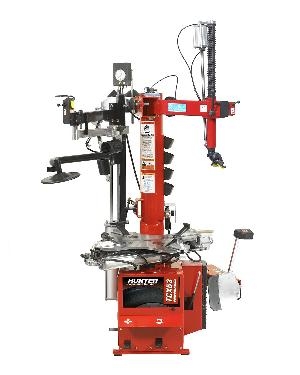

TCX53 Tire Changer with Leverless Mount Head

Description

TCX53 Professional Electric Tire Changer with Bead Press Arm and Leverless Mount Head.

Features

• Heavyweight
  • Heaviest model in its class
  • Long service life
• Easy-to-Use Adjustable Tabletop
  • Built-in adjustment system provides 10- to 26-in. clamping range
  • All jaws adjust simultaneously for mistake-free clamping
  • Polished tabletop for easy cleanup
  • Hi-grip jaw covers add mounting torque and protect wheels
  • Diameter marks aid external clamping
• Class-Leading Rigidity
  • Rigid chassis reduces damage risk and operator effort
• Leverless Configuration
  • Locks diameter at any position, hand-screw adjustments optional
  • Tapered design works with raised-spoke rims
  • Lifts bead without use of levers
• More Torque, More Speed
  • More Torque - Unique 110V or 220V motor generates more torque than popular air or electric models
  • Faster than popular alternatives- increases productivity
  • Electric tabletop doesn't slow down under load like air motors
• PowerOut Bead Loosener
  • Most powerful bead breaker in its class
  • Fingertip control eases service of large assemblies
  • Three-way adjustable for best rim fit
  • Shovel protectors standard
• Bead press system
  • The bead press system speeds and eases clamping, lubricating, demounting and mounting tough wheel and tire combinations
  • The patented design centers on the wheel to simplify operation
• Clamping assistance when needed
  • Pneumatic press cones and extension ease external wheel clamping
• Demounting: Integrated Tools Ease Labor
  • Rollers assist in bead lubrication
  • Rollers create gap for lever placement
  • Lower disk for bead reloosening
  • Assists lifting heavy tires
• Mounting: Difficult Process Made Easy
  • Quick single arm rotation
  • Mounts many tough tires
  • Adding fixed arm allows mounting of the very toughest combinations

Includes

• Multi-arm bead press system and cones
• Steel mount head with polymer inserts
• Polymer mount head
• Standard bead lever
• Bead lever protectors (polymer)
• Shovel protectors (polymer)
• Hi-grip jaw protectors (polymer)
• Inflation system
• Four storage pockets

Accessories

• HUN2020451 Wheel Lift - eases servicing of large assemblies. Allows for more careful handling of expensive wheels.
• HUN2028851 Storage Shelf- offers convenient storage for your most used tools and accessories.

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

• Electrical Requirements: (110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1ph, NEMA L6-20P
• Air pressure operating range: 110-145 psi
• Air Volume of Inflation Tank: 4.75 gallons
• Wheel Clampimg (nominal) External clamping (min-max): 10in. to 26in.
• Wheel Clamping (nominal) Internal clamping (min-max): 12in. to 28in.
• Table rotation speed Electronic motor: 10CW/ 10CCW
• Maximum Tire Diameter: 46 in.
• Maximum Tire Width: 14 in.
• Bead Loosener Width: 16 in.
• Noise Level: 74 dB
• Machine weight: 800 lbs.
