Discontinued

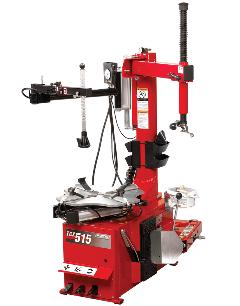

Enhanced Tire Changer with Bead Press Arm - Air Motor

Item Number: HUNTCX515A - Supplier: HUNTER ENGINEERING COMPANY

THIS ITEM HAS BEEN DISCONTINUED. PLEASE REFERENCE THE HUNTCX50, HUNTCX51, AND HUNTCX53 SERIES TIRE CHANGERS FOR SUGGESTED REPLACEMENT.

Description

Enhanced conventional tire changer with Bead Press Arm with Air Motor forms a superior performing production package

Features

  • Bead Press Arm - Easy clamping, mounting and demounting difficult combinations
    • New lifting hook aids the demounting of heavy tires
    • Press cone aids clamping on stiff tires
  • Motor and Drive - Powerful 110V / 220V motor for best torque and fastest speed in class
  • Swing Arm Column - Bead roller guides, upper bead below the mount head during mounting
    • Locks rim diameter for same-sized wheels
    • Steel and polymer heads standard
    • Saves space over tilt-column designs
  • Tabletop - Twin-cylinders give 40% more clamping force than single-cylinder designs
    • 6 to 26 inches clamping range
    • Diameter marks ease clamping
  • Side-Mounted Bead Loosener - Familiar side shovel design with standard protector sleeve
    • Three-way adjustable
    • Enlarged wheel pad
  • Clip-on Inflation - Inflation air through jaws with 60psi safety limit
  • Standard mount Heads- Steel head with polymer insert for wheel protection, polymer head for mounting and demounting
  • Wheel Protection - Polymer protection for wheel surfaces come standard
  • Storage - Two double pocket standard storage
  • Extender/Reducer - setup to increase diameter to 26 inches or reduce diameter to 6 inches

Includes

  • Bead press arm and cone
  • Steel mount head with polymer inserts
  • Polymer mount head
  • Jaw extender / reducer
  • Standard bead lever
  • Bead lever protectors (polymer)
  • Shovel protectors (polymer)
  • Clamping jaw protectors (polymer)

Accessories

  • Lubrication Roller - allows the rim and tire to be lubricated, which eases demounting and protects the tire and rim
  • Bead lever and Protector Sleeve - High performance dramatically reduces servicing effort

Warranty

 Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

NOTE: Some dimensions, capabilities, and specifications may vary depending on tire and wheel configurations or options.

Product Specifications

  • Electric Requirements: (110 mode) 110V, 14A, 1ph, NEMA 5-15P (220 mode) 220V, 10A, 1ph, NEMA L6-20P
  • Air Pressure Operating Range: 110-145 psi
  • Maximum Tire Diameter: 50.7 inches
  • Maximum Wheel Width: 14.3 inches
  • Air Volume of Inflation Tank: 4.75 gallons
  • Mount/Demount Mechanism: Leverless Mount head w/ protection OR Standard Mount Head w/ protection
  • Rim Diameter Range - External: 6 - 26 inches
  • Rim Diameter Range - Internal: 13 - 26 inches
  • Table Rotation Speed: 10 rpm CW / 5 rpm CCW
  • Noise Level: 74 dB
