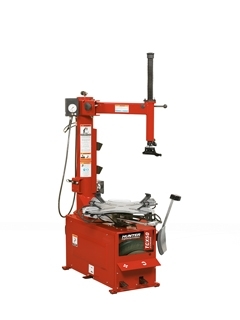

TCX50 Standard Tire Changer, Air Operated

Description

TCX50 Standard Tire Changer, Air Operated

Features

• Heavyweight
  • Heaviest model in its class
  • Long service life
• Class-Leading Rigidity
  • Rigid chassis reduces damage risk and operator effort
• Easy-to-Use Adjustable Tabletop
  • Built-in adjustment system provides 10- to 26- in.
  • All jaws adjust simultaneously for mistake-free clamping
  • Polished tabletop for easy cleanup
  • Hi-grip jaw covers add mounting torque and protect wheels
  • Diameter marks aid external clamping
• More Torque, More Speed
  • More Torque
    • Unique 110V or 220V motor generates more torque than popular air or electric models.
  • Faster
    • Faster than popular alternatives- increases productivity
    • Electric tabletop doesn't slow down under load like air motors
• PowerOut Bead Loosener
  • Most powerful bead breaker in its class
  • Fingertip control eases service of large assemblies
  • Three-way adjustable for best rim fit
  • Shovel protectors standard

Includes

• Polymer mount head
• Standard bead lever
• Bead lever protector (polymer)
• Shovel protector (polymer)
• Clamping jaw protectors (polymer)
• Inflation system
• Two storage pockets

Accessories

• HUN2028331- Bead Press Arm (Standard on TCX51) optional
• HUN2028341- Bead Press System (Standard on TCX53) optional

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Electrical Requirements: (110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1 ph, NEMA L6-20P
• Wheel Clamping (nominal) Internal clamping (min-max): 12 in. - 28 in.
• Table rotation speed Air motor: 10 CW / 5 CCW
• Maximum Tire Diameter: 46 in.
• Maximum Tire Width: 14 in.
• Bead Loosener Width: 16 in.
• Noise Level: 74 dB
• Machine weight: 630 lbs.
• Air pressure operating range: 110-145 psi
• Air Volume of Inflation Tank: 4.75 gallons
• Wheel Clamping (nominal) External clamping (min-max): 10 in. - 26 in.
