Discontinued

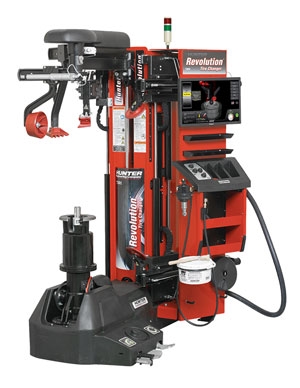

Revolution Walk Away Tire Changer

Item Number: HUNTCR1X - Supplier: HUNTER ENGINEERING COMPANY

Description

Revolution™ Tire Changer —The easiest tire changer to use in the industry. Tire Changing is an all day task, not a race for single tires. Assembly after assembly, the Revolution™ outpaces conventional equipment. The Revolution TCR1X with WalkAway makes bead breaking and demounting autonomous for tires 2-4 in a set. This can speed a 4-tire mount and balance operation by 25%, or much more!

Features

  • WalkAway™ Operation
    • 80-second unattended bead breaking and demounting process
    • When paired with wheel balancing, 25%+ time savings is possible
  • Automatic Adds Simplicity
    • Same procedure for all tires and wheels
    • Operator experience no longer a factor.
  • “Go” Pedal Controls Operation
    • Press “Go” to make selection
    • Hold “Go” to to advance procedure.
  • Space Saving Wheel Lift
    • Spindle lifts tire directly into position
    • Built-in wheel lift reduces overall footprint.
  • Intuitive touchscreen interface indicates operator’s current step and monitors progress.
  • Camera monitors operation throughout to identify incorrect operation and verify proper work
  • Bead loosening rollers work best for widest variety of tires
  • Powered press arms assist on demand
  • Leverless tool head demounts without levers and prevents damage to tire and rim
  • Powerful pneumatic center clamp holds wheel secure.

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Power requirements: 208-230V, 1 phase, 60Hz, 24A, NEMA 30 amp plug, L6-30P, 5,520 watts
  • Air Supply Requirements: 125 ± 25 psi (8.6 ± 1.7 bar)
  • Air Consumption: 1 SCFM (27 L/Min)
  • Shipping weight: 1,856 lbs (842 kg)
  • Width: 52 in. (1,321 mm)
  • Height: 86 in. (2,184 mm)
  • Depth: 67 in (1,702 mm) Wheel lift up, 78 in. (1,981 mm) - Wheel lift down
  • Mount / Demount Tool: Polymer Self Inserting Leverless
  • Clamping type: Center w/ Quick Clamp
  • Bead Loosening Type: Upper / Lower Roller
  • Match mounting capable: Yes
  • Rim diameter range: 12 - 30 in. (305 - 762 mm)
  • Maximum Tire Diameter: 50 in. (1,270 mm)
  • Maximum Wheel Width: 15 in. (381 mm)
  • Drive: variable up to 15 rpm CW / CCW, Torque: 875 ft-lbs (1186 Nm)
