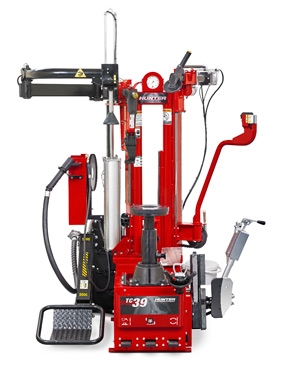

TC39 Center Clamp Tire Changer with Side Shovel, Wheel Lift

---

Item Number: HUNTC39SSW - Supplier: HUNTER ENGINEERING COMPANY

Description

The TC39 brings a powerful and easy to use leverless demount head to the same improved platform as the TC37. Features a bead press arm, two bead loosening rollers now with direct indention, and powerful variable-speed motors as standard equipment.

Features

• Bead press arm assists mounting difficult assemblies.
• Leverless mount head - positions beads without levers. Prevents damage to tire and rim.
• Motor and drive - 0-14 rpm variable clockwise speed, 7 rpm counter-clockwise speed. 867 ft-lbs. of torque.
• Blast inflation directs bursts of compressed air to easily seat the bead
• Simple operation single pendant control - all controls at fingertips
• Split bead roller system
  • Match-mounting made easy
  • Easy bottom bead demounting with roller
  • Direct indention eases bead braking on all tires
• Intuitive center-clamp system offers three height positions. Cam action multiplies clamping force.

Includes

• PowerOut™ Bead Loosener (Side Shovel)
• Wheel Lift

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

• Mount / Demount tool: Polymer Self-inserting Leverless
• Clamping type: Center w/ Quick Clamp and Cam Plate
• Bead Loosening Type: Rollers or Shovel (optional)
• Match mounting capable: Yes
• Adjustable Clamping Height: Yes
• Rim diameter range: 10-26"
• Maximum Tire Diameter: 46"
• Maximum Wheel Width: 19"
• Drive: Variable CW 15 rpm CCW
• Power requirements: 208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
• Air Supply Requirements: 115-145 psi (8-10 bar)
• Shipping Weight with Wheel Lift: 875 lbs. (397 kg)
• Width: 58" (1,473 mm)
• Height: 72" (1,829 mm)
• Depth: 57" (1,448 mm)
