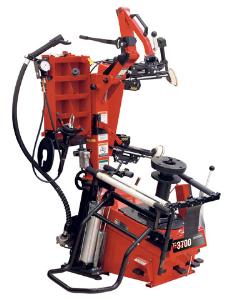

High Capacity Tire Changer with Wheel Lift Package


Item Number: HUNTC3710EW - Supplier: HUNTER ENGINEERING COMPANY

Description

The exclusive features of Hunter's TC3700 Series tire changers operate in unison to easily and safely change the world’s toughest tires.

Features

  • The center-support clamping table, self-centering quick clamp and adjustable rear column provide the flexibility to easily mount large-diameter tires up to 50 inches
  • With three easily adjustable clamping heights, the TC3700 requires no flange plates for most reverse wheels and allows the operator to work at the most comfortable position

  • Variable-speed, high-torque electric drive system operates at a low speed with increased torque to

    prevent damage to wheels and tire beads when servicing tough combinations or a faster speed when

    servicing less difficult combinations

  • The exclusive hydraulic bead-loosening roller system gently rolls tires off or on rims. With the simple

    two-finger control, a technician can safely hold the tire with the rollers while spinning the wheel to

    complete match-mounting procedures

  • The floating, articulated mounting arm and polymer mounting head follow the rim closely, reducing

    stress on the bead

  • Force Multiplier Arm adds leverage when seating the mounting head and holding it down against the

    wheel

  • Wheel Lift Package - Eliminates manual lifting. Polymer-coated wheel-contacts protect the
    finish on custom wheels
    Includes
  • An optional Bead Press Arm pushes and holds stiff sidewalls in the drop-center position to ease

    demounting or mounting by greatly reducing stress to the bead (standard on HUNTC3715E and HUNTC3715EW

Includes

  • HUNRP6G10A23 Force multiplier
  • HUNRP6G10A11 HM bead lever with protection
  • HUNRP6713421  Two wheel support plate guards for reverse wheels
  • HUNRP6G10A67 28-inch bead depressor tail
  • HUNRP6G100A7 Mechanical bead roller
  • Quick clamp center shaft with 90-degree lock
  • V-way moveable column
  • Three working heights on center support

Accessories

HUNRP6G10A87 RP6-G1000A87 Flange Plates - For plastic-faced wheels and/or reverse wheels where
maximum finish protection is needed
HUN2022681 Pax Upgrade Kit
HUN2023411 Wheel Adapter - Adds clamping capability for 19.5" wheels with large center holes
HUN2025021 Bead Press Arm

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

NOTE: Because of continuing technological advancements, specifications, models and options are subject to change without notice.

Product Specifications

  • Weight: 843 lbs.
  • Clamping System Rotating Speed: 7 & 15 CW / 15 CCW
  • Torque: 850 ft-lbs.
  • Electrical Requirements: 220V, 1 ph, 15 A
  • Air Pressure Operating Range: 115-175 p.s.i.
  • Tire Diameter: 50"
  • :
  • Hydraulic Bead Loosening Roller System:
  • Maximum Bead Roller Opening Width: 19"
  • Diameter Range: 10" - 28"
  • Bead Roller Power - Each Roller: 4,170 lbs. @ 140 p.s.i.
  • Side Shovel:
  • Max. Bead Loosening Opening Width: 17"
  • Shovel Power: 6,600 lbs. @ 140 p.s.i.
  • Maximum Space Dimensions: 43" L x 72" H x 43"W
