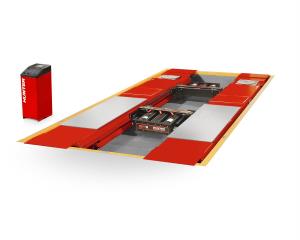

16,000 lb. Flush Mount Scissor Lift, FIA, PowerSlide, Harsh Duty - Red

---

Item Number: HUNRX16KLFPSPRR - Supplier: HUNTER ENGINEERING COMPANY

Description

16,000 lb. capacity Flush Mount Scissor Lift includes, Fully Integrated Alignment (FIA), PowerSlide®, Harsh Duty, Red

Features

• Large capacity with a small footprint
• 26 in. wide runways
• Handles up to 195 in. 2-wheel alignment bases, adding more medium duty vehicle capability
• Best in class drive on height
• Integrated air line
• Sensor feedback system
• Velocity safety fuses
• Safety locks
• Movable work steps
• Fast descent speed - 50% faster lowering times
• Ensures a soft landing by automatically slowing the last several inches.
• Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

• Fully Integrated Alignment
• PowerSlide®
• (2) 9,000 lb. Swing Air Jacks
• PowerSlide® Turnplates
• Two-Speed Lowering
• Slip Plate Tops

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Maximum Vehicle Weight: 16,000 lbs.. (7257 kg)
• Max. wheelbase - General service: 201 in. (5105 mm)
• Maximum Wheelbase - Two-Wheel Alignment: 195 in. (4953 mm)
• Maximum Wheelbase - Four-Wheel Alignment: 168 in. (4267 mm)
• Minimum Four-Wheel Alignment: 88 in. (2235 mm)
• Maximum Lifting Height: 70 in. (1778 mm)
• Runway Width: 26 in. (660 mm)
• Inside Width: 40 in. (1016 mm)
• Outside Width: 92.5 in. (2350 mm)
• Length: 237 in. (5877 mm)
• Depth: 12.5 to 13 in. (318 to 330 mm)
• Lifting Speed: 1 speed, 60 seconds
• Lowering Speed: 2 speed, 25 seconds
• Alignment Height: All lock positions
• Power Requirements: 208-230 VAC, single phase power, 26 Amp
• Air Pressure: 130-150 PSI (9-10.3 bar)
• Minimum Concrete Spec.: 3 in. (76 mm) thick, 3000 PSI (20,700 kPa) rating
• Maximum Floor Slope: 2 in. (51 mm) over 126 in. (3200 mm)
