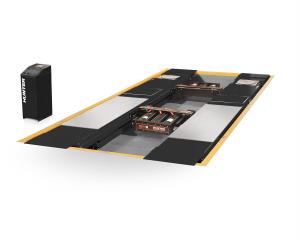

16,000 lb. Flush Mount Scissor Lift, Harsh Duty - Black

---

Item Number: HUNRX16KFPRB - Supplier: HUNTER ENGINEERING COMPANY

Description

16,000 lb. capacity flush mount, harsh duty scissor lift - black

Features

• Large capacity with a small footprint
• 26 in. wide runways
• Best in class drive on height
• Integrated air line
• Sensor feedback system
• Velocity safety fuses
• Safety locks
• Movable work steps
• Fast descent speed - 50% faster lowering times
• Ensures a soft landing by automatically slowing the last several inches.
• Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

• (2) 9,000 lb. Swing Jacks
• Louvered Ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Maximum Vehicle Weight: 16,000 lbs. (7257 KG)
• Max. wheelbase - General service: 183 in. (4648 mm)
• Maximum Wheelbase - Two-Wheel Alignment: 178 in. (4521 mm)
• Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
• Minimum Four-Wheel Alignment: 88 in. (2235 mm)
• Maximum Lifting Height: 71 in. (1803 mm)
• Runway Width: 26 in. (660 mm)
• Tread width - Min. inside: 40 in. (1016 mm)
• Tread width - Max. outside: 92 in. (2337 mm)
• Air Pressure: 90-150 psi (6.2-10.3 bar)
• Speed: 60 seconds (raise), 25 seconds (descent)
