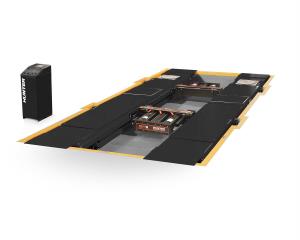

16,000 lb. Flush Mount Scissor Lift, Inflation Station - Black


Item Number: HUNRX16KFISB - Supplier: HUNTER ENGINEERING COMPANY

Description

16,000 lb. capacity flush mount scissor lift, includes Fully Integrated Alignment (FIA), Inflation Station, PowerSlide, (2) 9,000lb Swing Jacks, and PowerSlide turnplates.

Features

  • Massive capacity with a small footprint
  • 26 in. runways accept wide heavy vehicles
  • Flush installation provides ultimate in drive on clearance
  • Reduces clearance issues
  • Comfortable 72 in. maximum height
  • Stainless steel turnplates -Maximum corrosion resistance for long life
  • Integrated air line
  • Velocity safety fuses
  • Two 9,000 lbs. Swing Air Jacks.
  • Control panel - complete operation from the console
  • Safety locks - precision-fit teeth lock runways at 16 level height positions
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches

Includes

  • Fully Integrated Alignment
  • Inflation Station
  • PowerSlide
  • (2) 9,000 lb. Swing Jacks
  • PowerSlide Turnplates
  • Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Minimum Four-Wheel Alignment: 88" (2235 mm)
  • Maximum Vehicle Weight: 16,000 lbs.
  • Maximum wheelbase: General Service: 187" (4749 mm)
  • Maximum Wheelbase - Two-Wheel Alignment: 182" (4623 mm)
  • Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
  • Maximum Lifting Height: 71" (1803 mm)
  • Alignment Height: All lock positions
  • Runway width: 26" (660 mm)
  • Tread Width - Minimum Inside: 40" (1016 mm)
  • Tread Width - Maximum Outside: 92" (2337 mm)
  • Air pressure: 90-150 psi (6.2 - 10.3 bar)
  • Speed: 60 seconds raise, 25 seconds descent
