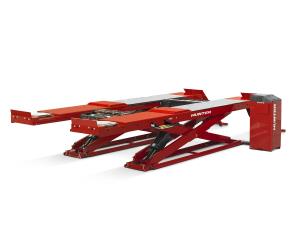

14,000 lb. Surface Mount Scissor Lift, FIA, PowerSlide, Harsh Duty - Red


Item Number: HUNRX14KPSPR - Supplier: HUNTER ENGINEERING COMPANY

Description

14,000 lb. capacity surface mount scissor lift includes, Fully Integrated Alignment (FIA), PowerSlide®, Harsh Duty Red

Features

  • Large capacity with a small footprint
  • 26 in. wide runways
  • Best in class drive on height
  • Integrated air line
  • Sensor feedback system
  • Velocity safety fuses
  • Safety locks
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

  • Fully Integrated Alignment
  • PowerSlide®
  • (2) 9,000 lb. Swing Jacks
  • PowerSlide® Turnplates
  • Louvered Ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Maximum Vehicle Weight: 14,000 lbs. (6350 kg)
  • Max. wheelbase - General service: 187 in. (4749 mm)
  • Maximum Wheelbase - Two-Wheel Alignment: 182 in. (4623 mm)
  • Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
  • Minimum Four-Wheel Alignment: 88 in. (2235 mm)
  • Lowered Height: 10.75 in. (273 mm)
  • Maximum Lifting Height: 72 in. (1823 mm)
  • Runway Width: 26 in. (660 mm)
  • Tread width - Min. inside: 40 in. (1016 mm)
  • Tread width - Max. outside: 92 in. (2337 mm)
  • Air Pressure: 90-150 psi (6.2-10.3 bar)
  • Speed: 60 seconds (raise), 25 seconds (descent)
