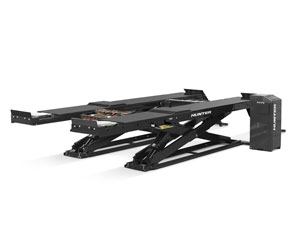

14,000 lb. Surface Mount Scissor Lift, Fully Integrated Alignment - Black

---

Item Number: HUNRX14KPSBL - Supplier: HUNTER ENGINEERING COMPANY

Description

14,000 lb. capacity surface mount scissor lift, includes Fully Integrated Alignment (FIA), PowerSlide, (2) 9,000lb Swing Jacks, and PowerSlide turnplates.

Features

• Massive capacity with a small footprint
• 26 in. runways accept wide heavy vehicles
• Low drive-on and high raise height - Only 10.75 in. fully lowered
• Reduces clearance issues
• Comfortable 72 in. maximum height
• Stainless steel turnplates -Maximum corrosion resistance for long life
• Integrated air line
• Velocity safety fuses
• Two 9,000 lbs. Swing Air Jacks.
• Control panel - complete operation from the console
• Safety locks - precision-fit teeth lock runways at 16 level height positions
• Movable work steps
• Fast descent speed - 50% faster lowering times
• Ensures a soft landing by automatically slowing the last several inches

Includes

• Fully Integrated Alignment
• PowerSlide
• (2) 9,000 lb. Swing Jacks
• PowerSlide Turnplates
• Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Tread Width - Maximum Outside: 92" (2337 mm)
• Air pressure: 90-150 psi (6.2 - 10.3 bar)
• Speed: 60 seconds raise, 25 seconds descent
• Lowered Height: 10.75" (273 mm)
• Maximum Vehicle Weight: 14,000 lbs. (6350 kg)
• Maximum wheelbase: General Service: 187" (4749 mm)
• Maximum Wheelbase - Two-Wheel Alignment: 182" (4623 mm)
• Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
• Minimum Four-Wheel Alignment: 88" (2235 mm)
• Maximum Lifting Height: 72" (1828 mm)
• Alignment Height: All lock positions
• Runway width: 26" (660 mm)
• Tread Width - Minimum Inside: 40" (1016 mm)
