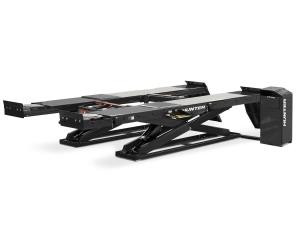

12,000 lb. Surface Mount Scissor Lift, Inflation Station, FIA, PowerSlide, Harsh Duty - Black

---

Item Number: HUNRX12KISPB - Supplier: HUNTER ENGINEERING COMPANY

Description

RX12KISPRB 12,000 lb. capacity Surface Mount Scissor Lift includes Inflation Station, Fully Integrated Alignment (FIA), PowerSlide®, Harsh Duty Black

Features

• Large capacity with a small footprint
• 24 in. wide runways
• Best in class drive on height
• Integrated air line
• Sensor feedback system
• Velocity safety fuses
• Safety locks
• Movable work steps
• Fast descent speed - 50% faster lowering times
• Ensures a soft landing by automatically slowing the last several inches.
• Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

• Fully Integrated Alignment
• Inflation Station
• PowerSlide®
• (2) 6,000 lb. Swing Jacks
• PowerSlide® Turnplates
• Louvered Ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Power Requirements: 208-230 VAC, single phase power, 26 Amp
• Air Supply Requirements: 130-150 PSI (9-10.3 bar)
• Min. Concrete Spec.: 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
• Min. Floor Slope: 2 in. (51 mm) over 126 in. (3200 mm)
• Maximum Vehicle Weight: 12,000 lbs. (5443 kg)
• Max. wheelbase - General service: 184 in. (4673 mm)
• Maximum Wheelbase - Two-Wheel Alignment: 179 in. (4547 mm)
• Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
• Alignment Height: All lock positions
• Minimum Four-Wheel Alignment: 88 in. (2235 mm)
• Lowered Height: 10 in. (254 mm)
• Maximum Lifting Height: 71 in. (1803 mm)
• Tread width - Min. inside: 40 in. (1016 mm)
• Tread width - Max. outside: 88 in. (2235 mm)
• Speed: 55 seconds (raise), 25 seconds (descent)
