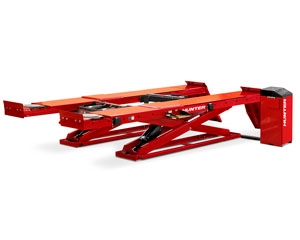

12,000 lb. Surface Mount Scissor Lift, Inflation Station

---

Item Number: HUNRX12KIS - Supplier: HUNTER ENGINEERING COMPANY

Description

12,000 lb. capacity surface mount scissor lift, includes Fully Integrated Alignment (FIA), Inflation Station, PowerSlide, (2) 6,000lb Swing Jacks, and PowerSlide turnplates.

Features

• Large capacity with a small footprint
• 24 in. wide runways
• Best in class drive on height
• Integrated air line
• Sensor feedback system
• Velocity safety fuses
• Safety locks
• Movable work steps
• Fast descent speed - 50% faster lowering times
• Ensures a soft landing by automatically slowing the last several inches.
• Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

• Fully Integrated Alignment
• Inflation Station
• PowerSlide
• (2) 6,000 lb. Swing Jacks
• PowerSlide Turnplates
• Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Maximum Vehicle Weight: 12,000 lbs. (5443 kg)
• Maximum wheelbase: General Service: 184" (4673 mm)
• Maximum Wheelbase - Two-Wheel Alignment: 179" (4547 mm)
• Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
• Minimum Four-Wheel Alignment: 88" (2235 mm)
• Maximum Lifting Height: 71" (1803 mm)
• Alignment Height: All lock positions
• Runway width: 24" (609 mm)
• Tread Width - Minimum Inside: 40" (1016 mm)
• Tread Width - Maximum Outside: 88" (2235 mm)
• Air pressure: 90-150 psi (6.2 - 10.3 bar)
• Speed: 55 seconds raise, 25-50 seconds descent
