Discontinued

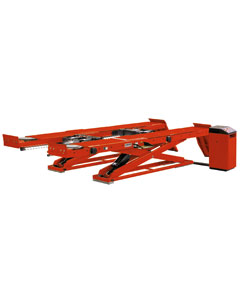

RX-10L Lift Rack - Surface- Mount w/ Inflation Station

Item Number: HUNRX10LIS - Supplier: HUNTER ENGINEERING COMPANY

Discontinued.  Replaced by RX10 'T' series lifts.

Description

RX Surface-Mount Scissor Rack (10,000 lb. Capacity/Long Deck)
with Air line kit, (2) 6,000 lb. Capacity Swing Air Jacks, Power Slide Slipplates and Inflation Station

The Hunter RX10 Lift features a 10,000-lb. lifting capacity and a scissor design that requires minimum bay space. Best-in-class lowered height of only 8.75 inches, providing clearance for vehicles with low ride height or low-hanging spoilers.

There are many RX-10 models available in surface-mount or flush-mount with various optional add-ons. For assistance in picking the right model for your service facility, call your program representative at 888-424-6857.

Features and Benefits

  • PowerSlide locks and unlocks slipplates with the touch of a button, removing the hassle of pulling and replacing lock-pins.
  • Inflation Station uses integrated air hoses at each wheel position to automatically set tire pressure to a pre-selected limit for each wheel simultaneously without cumbersome hoses and repeated gauge checks.
  • Fully Integrated Alignment capability allows communication with a compatible aligner to control PowerSlide and Inflation Station functions automatically.
  • Extra-wide 24" runways with louvered ramps prevent wheel spin in wet conditions and make positioning the vehicle on the lift rack easier.
  • Open access at the front and rear create an unrestricted workspace underneath the vehicle.
  • (2) Lightweight and movable work steps lock into 12 secure positions.
  • Safety locks at 16 height positions offer a variety of working heights for the technician.
  • Complete operation from the console.
  • Velocity safety fuses with instantaneously shutdown in the event of hydraulic failure.
  • Sensor Feedback System aid in keeping the runway level and safely stops if an obstruction is detected.
  • Chromed pins and teflon bearings for long life.
  • 6,000-lb. capacity swing air jacks add the capability of lifting vehicles off the runways during alignment procedures and other service operations.
  • A Gray/Dark Gray colored powder coat finish gives an exceptional appearance and durability that is more resistant to damage that occurs in the shop environment.
  • An integrated air line kit provides connections at the front and rear for tools and jacks.
  • Optional AlignLightsrunway lighting kit illuminates the workspace under the vehicleand turns on and off automatically as rack is raised or lowered.

Includes

  • (2) Movable work steps (surface-mount models only)
  • (2) Front wheel stops
  • (2) Two wheel chocks
  • Air line kit
  • (2) Louvered ramps with built-in wheel stops
  • (2) PowerSlide slipplates
  • (4) Inflation Station hose reels
  • (2) 6,000-lb. capacity swing air jacks

Options
HUN2021731   AlignLights Lighting Kit
HUN2023361 PowerSlide Low-Friction Turnplates (50 mm)
HUN2015791 Center Lift Jack Adapter for swing air jacks. Includes clip-on storage tray.

Warranty

Call your Tool and Equipment Program representative for specific warranty information.

Product Specifications

  • Lifting Capacity: 10,000 lbs.
  • Maximum Wheelbase - General Service: 192" (4877 mm)
  • Maximum Wheelbase - Two-Wheel Alignment: 179" (4547 mm)
  • Minimum Four-Wheel Alignment: 88" (2235 mm)
  • Lowered Height: 8.75" (222 mm)
  • Alignment Height: All lock positions
  • Maximum Lift Height: 72" (1829 mm)
  • Tread Width - Minimum Inside: 40" (1016 mm)
  • Tread Width - Maximum Outside: 88" (2235 mm)
  • Runway Width: 24" (609 mm)
  • Motor: 208-230 VAC/60 Hz/26 Amps/1 PH
  • Air: 90-150 p.s.i.
