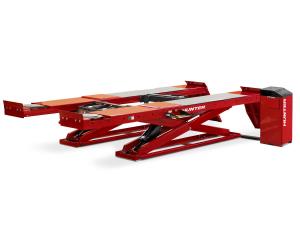

10,000 lb. Surface Mount Scissor Lift, Fully Integrated Alignment, Enhanced Surface Protection

Item Number: HUNRX10KPSRR - Supplier: HUNTER ENGINEERING COMPANY

Description

10,000 lb. capacity surface mount scissor lift, includes Fully Integrated Alignment (FIA), PowerSlide, (2) 6,000lb Swing Jacks, and PowerSlide turnplates. Harsh-Duty Option - Enhanced Surface Protection for Runway Lifts.  The Harsh-Duty models have been created to address today’s challenges of brine solutions used with increasing frequency throughout the US and abroad.

Features

  • Harsh-Duty - Enhanced Surface Protection
    • Zinc-rich primer base coat
    • Powder top-coat
    • Stainless steel slip plate top surfaces and turnplates
    • Pre-galvanized and powder coated thresholds
    • Epoxy caulking in joints in key visual areas.
  • Large capacity with a small footprint
  • 24 in. wide runways
  • Best in class drive on height
  • Integrated air line
  • Sensor feedback system
  • Velocity safety fuses
  • Safety locks
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

  • Fully Integrated Alignment
  • PowerSlide
  • (2) 6,000 lb. Swing Jacks
  • PowerSlide Turnplates
  • Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Minimum Four-Wheel Alignment: 88" (2235 mm)
  • Maximum Lifting Height: 72" (1829 mm)
  • Alignment Height: All lock positions
  • Runway width: 24" (609 mm)
  • Tread Width - Minimum Inside: 40" (1016 mm)
  • Tread Width - Maximum Outside: 88" (2235 mm)
  • Speed: 55 seconds raise, 25-50 seconds descent
  • Air pressure: 90-150 psi (6.2 - 10.3 bar)
  • Maximum Vehicle Weight: 10,000 lbs. (4536 kg)
  • Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
  • Maximum wheelbase: General Service: 171" (4343 mm)
  • Maximum Wheelbase - Two-Wheel Alignment: 166" (4216 mm)
