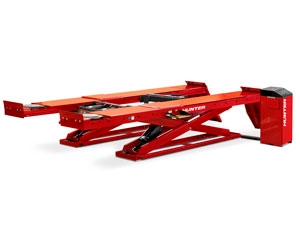

10,000 lb. Surface Mount Scissor Lift, Stainless Steel Turnplates, Enhanced Surface Protection

---

Item Number: HUNRX10KPRR - Supplier: HUNTER ENGINEERING COMPANY

Description

10,000 lb. capacity surface mount scissor lift, includes (2) 6,000lb Swing Jacks, and Stainless turnplates. Harsh-Duty Option - Enhanced Surface Protection for Runway Lifts.  The Harsh-Duty models have been created to address today’s challenges of brine solutions used with increasing frequency throughout the US and abroad.

Features

• Harsh-Duty - Enhanced Surface Protection
  • Zinc-rich primer base coat
  • Powder top-coat
  • Stainless steel slip plate top surfaces and turnplates
  • Pre-galvanized and powder coated thresholds
  • Epoxy caulking in joints in key visual areas.
• Large capacity with a small footprint
• 24 in. wide runways
• Best in class drive on height
• Integrated air line
• Sensor feedback system
• Velocity safety fuses
• Safety locks
• Movable work steps
• Fast descent speed - 50% faster lowering times
• Ensures a soft landing by automatically slowing the last several inches.
• Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

• (2) 6,000 lb. Swing Jacks
• Stainless Turnplates
• Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Maximum Vehicle Weight: 10,000 lbs. (4536 kg)
• Maximum wheelbase: General Service: 171" (4343 mm)
• Maximum Wheelbase - Two-Wheel Alignment: 166" (4216 mm)
• Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
• Minimum Four-Wheel Alignment: 88" (2235 mm)
• Maximum Lifting Height: 72" (1829 mm)
• Alignment Height: All lock positions
• Runway width: 24" (609 mm)
• Tread Width - Minimum Inside: 40" (1016 mm)
• Tread Width - Maximum Outside: 88" (2235 mm)
• Air pressure: 90-150 psi (6.2 - 10.3 bar)
• Speed: 55 seconds raise, 25-50 seconds descent
