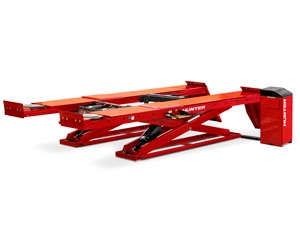

10,000 lb. Surface Mount Long Deck Scissor Lift, Stainless Steel Turnplates


Item Number: HUNRX10KL - Supplier: HUNTER ENGINEERING COMPANY

Description

10,000 lb. capacity surface mount long deck scissor lift, includes (2) 6,000lb Swing Jacks, and Stainless turnplates.

Features

  • Large capacity with a small footprint
  • 24 in. wide runways
  • Best in class drive on height
  • Integrated air line
  • Sensor feedback system
  • Velocity safety fuses
  • Safety locks
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

  • (2) 6,000 lb. Swing Jacks
  • StainlessTurnplates
  • Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Maximum Vehicle Weight: 10,000 lbs. (4536 kg)
  • Maximum wheelbase: General Service: 184" (4673 mm)
  • Maximum Wheelbase - Two-Wheel Alignment: 179" (4547 mm)
  • Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
  • Minimum Four-Wheel Alignment: 88" (2235 mm)
  • Maximum Lifting Height: 72" (1829 mm)
  • Alignment Height: All lock positions
  • Runway width: 24" (609 mm)
  • Tread Width - Minimum Inside: 40" (1016 mm)
  • Speed: 55 seconds raise, 25-50 seconds descent
  • Tread Width - Maximum Outside: 88" (2235 mm)
  • Air pressure: 90-150 psi (6.2 - 10.3 bar)
