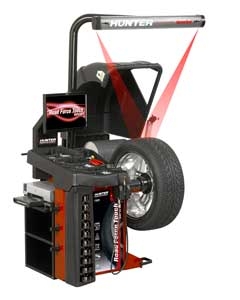

RFT03 Road Force Touch Balancer

---

Item Number: HUNRFT03 - Supplier: HUNTER ENGINEERING COMPANY

Note:  This balancer does not meet minimum requirements as stated in TSB SST 030. To meet these requirements, reference HUNRFT03KIA, HUNRFT13KIA, HUNRFT23, or HUNRFT33.

Description

Road Force Touch ® GSP9700 high volume LCD wheel balancer provides complete wheel diagnostics faster than a traditional balance and features a touchscreen interface to simplify operation. Includes HammerHead® TDC Laser and Ink Jet Printer with Storage.

Features

• Enhance your service by balancing a wheel and performing a Road Force® test in the same amount of time as a typical balance.
• Road Force® roller test a wheel as it would perform under the weight of a vehicle to uncover hidden ride quality issues.
• Intuitive touchscreen interface simplifies operation.
• ForceMatching® optimizes tire and rim match-mounting to cancel radial-force vibration.
• StraightTrak® measures pull foces and recommends wheel placement to nulify vehicle drift. Now measures individual tire pulls!
• SmartWeight® improves overall balancing results, while saving on costs and boosting productivity through more efficient weight application.
• eCal™ auto-calibration provides true "self-calibration" without any input from the operator.
• CenteringCheck® verfies proper wheel mounting.
• TranzSaver™ compares tire circumferences to prevent costly damage to AWD transmissions from mismatched wheels.
• View vehicle specific TPMS reset instructions on-screen.
• On-demand videos assist training and improve overall service.
• Auto-Up Hood saves time by automatically lifting the hood for the operator after spins.
• HammerHead® TDC Laser features greater weight placement accuracy to avoid mistakes.
• Printer Kit with storage shelf allows you to print Road Force Measurement® test results, and also sell and perform TPMS work properly and efficiently.
• Optional Wheel Lift safely services heavy, oversized wheels.
• Optional AutoClamp System clamps wheels automatically allowing you to save time and effort.

Includes

• HammerHead® TDC Laser
• Ink Jet Printer and Side Storage Kit

Accessory

HUN2018391 20-1839-1 Adjustable flange plate and stud kit

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

NOTE: Some dimensions, capacities, and specifications may vary depending on model, accessories, and tire and wheel configurations.

Product Specifications

• Maximum Tire Diameter: 40" (1016mm)
• Maximum Tire Width: 20" (508mm)
• Maximum Tire Weight: 175 lbs. (79 kg)
• Radial and Lateral Runout Accuracy: 0.002" (0.051mm)
• Imbalance Resolution: ± 0.01 oz (0.28g)
• Balancing Speed: 290-300 rpm
• Motor: Programmable drive system abd DC motor
• Placement Accuracy: 512 Positions, ±0.35°
• Power Requirements: 196-253V, 10 Amp, 50/60 Hz, 1 Ph (Power cable includes: NEMA 20 Ampplug, L6-20P)
• Air Supply: 100 - 175 psi (7 - 12 bar)
• Roller Force: Variable up to 1,250 lbs. (567 kg)
• Rim Width: 1.5" - 20.5" (38mm - 521mm)
• Rim Diameter: 10" - 30" (254mm - 762mm)
• ALU: 14' - 44" (356mm - 1118mm)
• Dimensions: 65"W x 89"H x 62"D (1651mm x 2261mm x 1576mm)
• Weight: 713 lbs. (323 kg)
