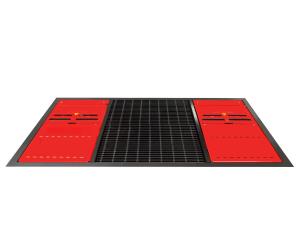

Quick Tread Depth Plates, Flush Mount

MUST SPECIFY COLOR AT THE TIME OF ORDER.

Description

Quick Tread™ At-A-Glance
Driven by Hunter's award-winning WinAlign® software, Quick Tread™ -- Hunter's drive over tread depth unit -- automatically measures the tread depth of each tire in seconds. Quick Tread measures tread depth, analyzes the data on-site and instantly displays results on your Quick Check™ console. Quick Tread operation does not require an internet connection and there are no recurring monthly charges. Quick Tread is to be used as an add-on with a new or existing Quick Check system.

Features

• Built-in Accuracy
  • Eliminate human error and guesswork
• Point Cloud Measurement Technology
  • Measure a two-inch tire segment, not a single point
  • 280,000 data points (800 x 350)
  • Generate three-dimensional models of the customer's tire
• Durable Design
  • Powder-coated stainless steel construction to resist corrosion
  • Self-cleaning air knife
  • Mechanical shutter protects sensors
  • Completely sealed sensor housing protects electronic components
• Customizable Printouts
  • Easy-to-understand printouts help sell tires
  • Multiple printout options
  • Displays up to six measurements per tire

NOTE: This system is to add-on to an existing Quick Check system. To gain the ability to preform drive over tread depth, you must already have a Quick Check system, and the system needs to be running WinAlign software version 14.3. If the Quick Check system is running an older WinAlign version, then HUN2028171 will be needed to operate the unit with the tread depth plates added.

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
