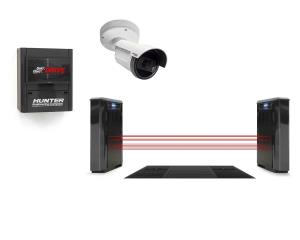

Quick Check Drive with Flush-mount Quick Tread Edge, Wall-Mount Console, Vehicle ID, Black

Item Number: HUNQCD92TFRB - Supplier: HUNTER ENGINEERING COMPANY

Description

Quick Check Drive Sensors DRV1 with Flush-mount Quick Tread Edge QTEF, Unmanned Wall-Mount Console WU592, and External Vehicle ID (20-3541-1).

Other product group combinations available.

Features

Quick Check Drive

  • Automatic alignment results
    • 32 lasers and 8 cameras scan wheels as they drive past
    • Touchless total toe and individual camber
    • Unmatched accuracy and repeatability
    • No stopping, data entry, or labor required
  • Automatic vehicle identification
    • Captures front and/or rear license plates
    • Automatic license plate-to-VIN conversion
    • Automatically determine OEM specs on most vehicles
  • Automatic results display
    • Display alignment results on large monitor
    • Complete transparency for customer
    • Ideal for service drive and/or waiting room
  • Quick Check Drive™ is integration ready
  • Less bay space required
  • Automatic body image capture
    • Automatic body photos protect against false damage claims
    • 40 or more high-definition images of every vehicle on both sides
    • Images are stored online for 15 days

Quick Check Edge

  • Measures tread depth, analyzes data on-site, and instantly displays results
  • Boost most profitable undercar services
  • No additional labor required
  • Captures accurate tread information on all vehicle traffic
  • Increases accuracy by eliminating guesswork and manual inspection
  • Detects tread grooves and reports up to six measurements per tire
  • Results sent to console and graphically shown for customer
  • Built with corrosion-resistant stainless steel, includes self-cleaning air knife
  • Flush-mounted configuration integrates seamlessly with Quick Check Drive™
  • Stores tread depth records to create customer history for use in marketing efforts
  • No recurring monthly charge

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • QCD Sensor Width: 8"
  • QCD sensor height : 41"
  • QCD Sensor Depth: 37"
  • WU592 Cabinet Width: 24"
  • WU592 Cabinet Height: 28.5"
  • WU592 cabinet height with optional pedestal : 69.5"
  • WU592 Cabinet Depth: 13.5"
  • WU592 Cabinet Shipping Weight: 155 lbs.
  • Power requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
  • Processor: 3.7 Ghz Intel® Core™ i3
  • QCD Sensor Shipping Weight: 140 lbs. (per tower)
  • Quick Tread Edge Dimensions: 94" x 52" x 15"
  • Quick Tread Edge Weight: 1,723 lbs.
  • QCD Spacing Between Sensors: 142" - 184"
  • Operating system: Windows® 10 - 64 bit
  • Unmanned console: Standard
  • Power line filter: Standard
  • Cable Length: 75 ft. per tower
  • Hunter QuickCheck® Software: Standard
  • Vehicle Specifications (30 plus years): Standard - 2 years free updates
  • Real-time Specs (delivered by web): WebSpecs®
  • HunterNet®: 3 years free access for 1 user
  • QC alignment printout: Fully customizable
  • Internet Connection: 20 Mbps (ethernet cable required)
  • License to VIN service: Requires CARFAX EULA on file
  • Memory: 4 GB of DDR3 SDRAM
  • Hard drive: 250 GB Solid State Hard Drive (or greater)
  • DVD-RM/CD-RW Drive: Standard
  • Monitor class: 22" widescreen LCD (QCD92) touchscreen
  • Wireless Network Module: Yes- standard
