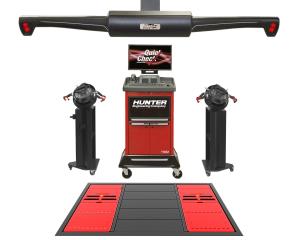

Drive-Under Quick Check System w/ Flush Mt Quick Tread

---

Item Number: HUNQC72TF - Supplier: HUNTER ENGINEERING COMPANY

Description

Hunter's Alignment Quick Check® System with Integrated Tread Check System.

NOTE: The Alignment Quick Check System MUST be installed in a bay or portion of the shop without a lift rack. The system is NOT designed to be used in conjunction with a lift rack. For additional site requirements, contact a program representative.

Quick Check Features

• Provides results in 58 seconds! (70 seconds for Export market)
• (4) High-resolution digital cameras measure angles with pinpoint accuracy.
• Exclusive QuickComp™ compensates all four wheels and captures measurements in one forward roll.
• Color printouts display front and rear total toe, camber on all wheels, and potential pre-mature tire wear.
• Standard VIN bar code scanner instantly enters a vehicle into the system to recall specifications.
• Set up in seconds with QuickGrip adaptors and three-dimensional targets:
  • Adjusts easily to various wheel sizes
  • Simple, one-touch lock lever - no knob twisting
  • Safely grips tire tread - no metal-on-metal contact
  • No electronics at the wheel
  • Lightweight, compact design
  • Shop-touch polymer construction

Quick Tread Features

• Easy-to-understand customizable printouts help sell tires
• Built-in accuracy eliminates human error and guesswork
• Point Cloud measurement technology- measure a full width by two inch segment
• 280,000 data points
• Generate three-dimensional models of the customer's tire
• Powder-coated stainless steel construction to resist corrosion
• Self-cleaning air knife
• Mechanical shutter protects sensors
• Completely sealed sensor housing protects electronic components

Includes

• Compact Cabinet and Widescreen LCD
• Keyboard and Mouse
• Wireless Remote
• Color Printer
• (4) High-Resolution Cameras
• (4) Three-Dimensional Targets
• (2) Sets of 8 Quick-Change Arms
• VIN Bar Code Reader Kit  (not available to Export market)
• (4) QuickGrip Wheel Adaptors
• (1) Set of 4 Protective Rings for QuickGrip Wheel Adaptors
• (2) Roll Around Storage Carts
• Quick Tread® Flush-Mounted Sensors

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Equipment Video Help / Assistance: Standard
• Wireless Network Module: Standard
• Processor: 3.06 GHz Intel® Core™ i3 - 3.1 GHz (or greater)
• Camera Configuration: Drive-under
• Memory: 4 GB of DDR3 SDRAM
• HunterNet®: 3 years free access for 1 user
• QC Alignment Printout: Thousands of available options
• Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
• Pedestal Location: 914 - 2438 mm (36-96 in.) from nearest QT1 edge
• Printer: Color Ink Jet Printer
• Maximum Wheel Weight: 1,588 kg (3,500 lbs.) per wheel
• VIN Barcode Reader: Standard
• Air Supply Req. (SI Units): 90-150 P.S.I (6.2 - 10.3 bar)
• Wireless Remote: Standard
• Quick Check Cabinet Shipping Weight: 132 kg (290 lbs.)
• Power Line Filter: Standard
• Test Entry Speed: 2 to 8 mph (3-13 km/h)
• Quick Tread Shipping Weight: 455 kg (1723 lbs.)
• Drive-thru Capability: Yes
• Assembly Range: Up to 37" (940 mm)
• Compact Cabinet Dimensions: 813 mm x 1651 mm x 584 mm (32"W x 65"H x 23"D)
• Real-time Specs (delivered by web): WebSpecs®
• Quick Check Software: Standard
• Hard Drive: 120 GB Solid State Hard Drive (or greater)
• DVD-RW/CD-RW Drive: Standard
• Monitor Size: 24" (610 mm) Widescreen LCD
• Operating System: Windows® 7 - 64 bit
• Vehicle Specifications (30 plus years): 2 Years free updates
