Discontinued

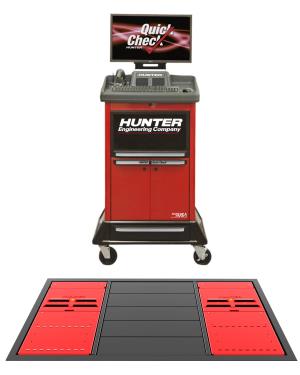

Quick Tread- Flush Mount with Mobile Console

Item Number: HUNQC70TF - Supplier: HUNTER ENGINEERING COMPANY

Description

Driven by Hunter's award-winning WinAlign® software, Quick Tread® automatically measures the tread depth of each tire in seconds. Quick Tread measures tread depth, analyzes the data on-site and instantly displays results on your Quick Check® console. Quick Tread operation does not require an internet connection and there are no recurring monthly charges.

NOTE: For additional site requirements, contact a program representative.

Features

  • Easy-to-understand customizable printouts help sell tires
  • Built-in accuracy eliminates human error and guesswork
  • Point Cloud measurement technology - measure a full width by two inch segment
  • 280,000 data points
  • Generate three-dimensional models of the customer's tire
  • Powder-coated stainless steel construction to resist corrosion
  • Self-cleaning air knife
  • Mechanical shutter protects sensors
  • Completely sealed sensor housing protects electronic components

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848

Product Specifications

  • Memory: 4 GB of DDR3 SDRAM
  • Monitor Size: 24" Widescreen LCD
  • Wireless Network Module: Standard
  • Quick Check Cabinet Shipping Weight: 132 kg 290 lbs.
  • Vehicle Specifications (30 plus years): 2 years free updates
  • Compact Cabinet Dimensions: 813 mm x 1651 mm x 584 mm (32"W x 65"H x 23"D)
  • Quick Check Software: Standard
  • Power Line Filter: Standard
  • Maximum Wheel Weight: 2 to 8 mph (3 - 13 km/h)
  • Processor: 3.06 GHz Intel® Core i3 - 3.1Ghz (or greater)
  • Hard Drive: 120 GB Solid State Hard Drive (or greater)
  • DVD-RW/CD-RW Drive: Standard
  • Real-time Specs (delivered by web): WebSpecs®
  • Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
  • Pedestal Location: 914 - 2438 mm (36 - 96 in.) for nearest QT1 edge
  • VIN Barcode Reader: Standard
  • Camera Configuration: NA
  • Operating System: Windows® 7 - 64 bit
  • HunterNet®: 3 years free access for 1 user
  • Printer: Color Ink Jet Printer
  • QC Alignment Printout: Thousands of available options
  • Wireless Remote: Standard
  • Air Supply Req. (SI Units): 90-150 P.S.I (6.2 -10.3 bar)
  • Quick Tread Shipping Weight: 455 kg (1723 lbs.)
