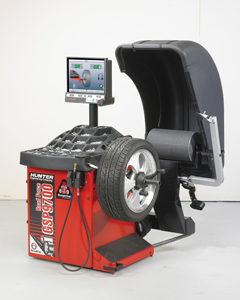

GSP9700 Road Force Measurement System w/ Straight Trak LFM

Discontinued. Suggested Replacement: HUNRF Series Balancers.

Description

Hunter's GSP9700 Road Force Measurement System performs a simulated road test on the wheel assembly to quickly identify and diagnose tire/rim-related vibration and tire pull problems.

Features

• The exclusive "road roller" of the Road Force Measurement system samples the entire footprint of the tire, including the sidewalls' contribution to ride quality, to detect non-balance related issues.
• SmartWeight balancing technology minimizes correction weight usage and maximizes productivity by reducing wheel costs by 33% or more and speeding service time with more single-spin balances.
• The LCD interface communicates balancing results clearly using simple color graphics to help technicians quickly and easily understand needed service.
• The ForceMatching procedure finds the high or stiff area on a tire's side-wall and the low spot on a rim to be marked and matched to cancel vibration caused by radial force variation.
• The BDC Weight Placement Laser guides the operator to the precise bottom-dead-center location for adhesive weight placement
• The optional StraightTrak LFM (Lateral Force Measurement) feature assesses the lateral forces in tires that cause pulls and provides corrective measures to minimize, offset or eliminate the problem
• Clamping options include a manual wing nut or the AutoClamp feature, which saves time and energy by automatically positioning and tightening the clamp adaptor on the balancer.
• The optional, integrated wheel lift allows a single technician to easily mount wheels weighing up to 175 lbs., which helps prevent potential injuries and fatigue from manually lifting wheels into place.

Warranty

Three years on circuit boards, PC's, options installed inside PC's, CRT, power supply and transducers. One year on all other parts and labor.

Product Specifications

• Maximum tire weight: 175 lbs.
• Radial force emasurement accuracy: 2 lbs., 10N
• Motor: Programmable drive system and DC motor
• Balancing Speed: Variable rpm, direction and torque (0-300rpm)
• Power Requirements: 230V (-10%/+15%), 20 amp, 50/60-Hz, 1-ph, NEMA Receptacle L6-20R
• Air Supply Requirements: 100-175 psi (7-12 bar)
• Maximum tire diameter: 40"
• Roller force: up to 1,400 lbs.
• Rim width: 1.5" to 20"
• Imbalance resolution: +/- 0.01 oz. or 0.5 gms.
• Rim diameter: 10" to 30"
• ALU: 7.5" to 44"
• Maximum tire width: 20"
• Radial & lateral runout accuracy: .002"
• Placement Accuracy: 512 positions. +/- .35 degrees
• Shipping Weight: 675 lbs.
