Discontinued

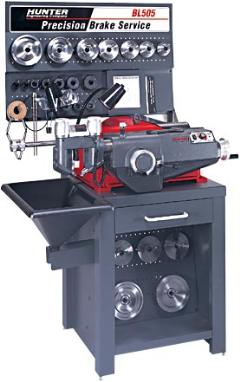

Brake Lathe w/ Bench/Digical

Item Number: HUNBL505DAB - Supplier: HUNTER ENGINEERING COMPANY

Description

The HunterPro Brake Lathe Package includes a BL505 Combination Brake Lathe and the choice of adaptor kits to customize the lathe to match the service profile of your shop.

 Digi-Cal Auto Measurement Caliper is the patented Digi-Cal Auto Measurement displays the depth of cut for rotors and drums and also measures thickness, drum diameter and total indicated run-out of the workpiece.

Features

  • The BL505's unique design allows the operator to change the setup from rotors to drums and vice versa with unprecedented ease and speed
  • An infinitely adjustable feed rate provides a "Dial-in" fast rate for rapid material removal, very slow for final surface finish or any rate in between and even performs "one-cut passes."
  • Three easy-to-access spindle speeds allow the correct speed for all size workpieces (no tools required).

Includes

  • Brake lathe w/Digi-Cal
  • Bench
  • Standard accessories (adaptors NOT included)

Accessories (Adaptor Kits)

  • HUN2016651- Level 1 Passenger car adaptor kit
  • HUN2016661- Level  2 Passenger car and light truck adaptor kit
  • HUN2016671- Level 3 3-Jaw chuck passenger car, light truck to 1-ton truck adaptor kit (no composites)
  • HUN2016681- Level 4 Passenger car, light truck to 1-ton truck adaptor kit

Warranty

Hunter Engineering Company warrants new equipment to be free from defects in material and workmanship under normal conditions of use for a period of one year (1) from the date of installation. Items warranted for a period of three years include, but are not limited to, all circuit boards, PCs (1)(2) and options installed inside the PC, CRTs (except 111 aligners), power supplies, transducers (3), and wheel balancer motors.

(1) During the first 30 days, complete PCs will be replaced at no charge under warranty. After 30 days, they will be repaired at no charge under warranty. All internal PC components will be replaced at no charge for a period of three years from the date of installation. During the first 90 days, the TC inflator box will be replaced at no charge under warranty; parts will replaced as needed for one year. (2) Printers may be exchanged during the first 90 days under warranty, then they may be repaired under warranty for an additional period of nine months. (3) Transducers include camber cells, brake tester load and weight cells, suspension analyzer pickups, and balancer force transducers.

Product Specifications

  • Feed rate: 0.002 - 0.014" rev. (infinitely variable)
  • Rotors (maximum diameter): 6 - 23"
  • Rotors (maximum width): 5-3/8"
  • Power Requirements: 115 - 230 volt, 50/60 Hz, 1 phase
  • Shipping Weight: 525 lbs.
  • Rotors (maximum thickness): 2"
  • Drums (maximum diameter): 6" - 28"
  • Drums (maximum width): 8"
  • Spindle speeds: 85/110/175 r.p.m.
