Discontinued
Superseded to HUNACE11

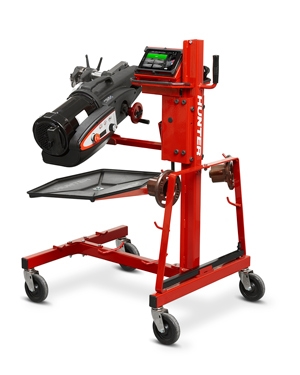

AutoComp Elite™ Passenger Brake Lathe

Item Number: HUNACEPAS - Supplier: HUNTER ENGINEERING COMPANY

Description

The Hunter AutoComp Elite™ On-Car Brake Lathe system keeps your brake service a cut above the rest. This is the first brake lathe to introduce Hunter’s revolutionary Anti-Chatter Technology to provide a smoother surface finish. The AutoComp Elite™ virtually eliminates the buildup of vibration (chatter) that can occur when machining rotors at a fixed speed. The AutoComp Elite™ can service each rotor in less than nine minutes and also utilizes exclusive precision machining and Hunter’s patented Variable-Speed Drive System to service rotors at the fastest possible speed without sacrificing quality.

Features

  • Automatic Compensation
    • Directly determines compensation and eliminates ‘wandering’
    •  Consistent compensation times average under 12 seconds
  • Touchscreen Interface
    • Intuitive touchscreen interface simplifies lathe operation
    • On-board training videos
    • Adapter and vehicle specification lookup
  • Anti-Chatter Technology (ACT)
    • Oscillates machining speed to prevent buildup of vibration (chatter)
    • No bands or other devices required
  • Variable-Speed Drive System
    • Avoid differential lock-ups by cutting at lower speed
    • No need to disassemble drive train
  • Convenient Controls
    • Control lathe operation via the on-board control panel or tablet interface
    • Controls are always upright and easy to read on both sides
  • BitMinder
    •  Track cutting bit usage to ensure cut quality and minimize expense
  • Precise Machining
    • Unique, stepped cutting pattern prevents radial “push-out” effect
    • True one cut pass
    • No sanding needed
  • Reverse Rotation
    • Service more vehicles with significant driveline drag
    • Turn axles that can only be turned in reverse

Includes

  • HUN1754921 Adaptor - 4 slot covers most vehicles with 4 lug bolt patterns;
    4x98 mm, 4x100 mm, 4x4.00",  4x4.25",  4x110 mm, 4x4.50", 4x114.3 mm, 4x120 mm
  • HUN1754931 Adaptor - 5 slot covers most vehicles with 5 lug bolt patterns;
    5x100 mm, 5x4.25", 5x110 mm, 5x112 mm, 5x4.50", 5x114.3 mm, 5x115 mm, 5x120 mm, 5x4.75"

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Rotor Diameter: 15.75" (400 mm)
  • Motor: 1.5 hp (1.12 kw) at 3450 rpm
  • Trolley Dimensions: 27.3" W x 30" L (693 mm W x 762 mm L)
  • Power Requirements: 115V, 15A, 60Hz, 1 ph NEMA 5-15P plug provided (230 V, 50-60 Hz optional)
  • Spindle Speed: Adjustable and auto variable (ACT), 0-150 rpm reversible
  • Included Tablet: 7" display with Android® OS
  • Lathe Dimensions : 20" W x 15" H x 27" L (508 mm W x 381 mm H x 686 mm L)
  • Rotor Maximum Width: 2.75" (70 mm)
  • Feed Distance: 4.3" (109 mm)
  • Maximum Runout Compensation: .020" (0.5 mm)
  • Spindle Height, High Range: 24.5"- 40.5" (622 - 1029 mm)
  • Shipping Weight: 302 lbs.
  • Spindle Height, Low Range: 20.25" - 36.25" (514 - 921 mm)
