$4,108.00
Direct from 3rd Party Supplier

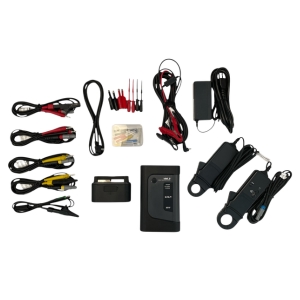

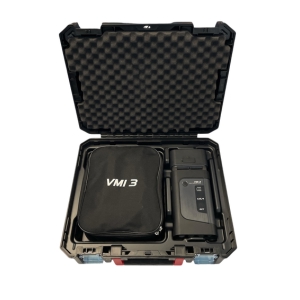

VMI 3 FULL KIT
Item Number: G0MTDNN010
Description
4 channel oscilloscope
Features
- Automatic Channel: Automatically sets up the measurement environment, enabling easy inspection of sensors and actuators for vehicle diagnostics.
- Single Shot: Automatically captures and freezes waveforms that meet user-defined trigger conditions for easier analysis of intermittent signals.
- Trigger function: Freezes and displays a waveform at a selected trigger point, making waveform analysis easier.
- Zero Adjustment: Proceeds zero adjustment for accurate measurement when using current (high or low current) sensor and pressure sensor in option function."
- 2-channel/4-channel: CH-A1, CH-A2, CH-B1, CH-B2, AUX
- Overlap: Waveforms overlapped on a single screen for easy analysis
- Time Scale Setting: Waveforms can be max/min by adjusting the time scale
- Multimeter
Product Specifications
General
- FPGA: Intel 400Mhz (154)
- MCU: STM32H743 480Mhz
- ADC: TI 12 Bit
- DMM: Cyrystek
- USB: High Speed 480Mbit/s
- SDRAM: 256Mbit
Oscilloscope
- Channel Probe entry: Single & differential
- Channel universal voltage: -1,000V ~+1,000V
- Channel current : -1,000A ~+1,000A
- Decomposition ability: 12 Bit
- Specification (sampling): 80Ms/s
Multimeter
- Voltage: -1,000V ~ +1,000V
- Resistance: 0.1ohm ~ 10Mohm
- Frequency: 1Hz ~ 100kHz
Simulation
- Voltage channel: 0V ~ 5V
- Pulse: 1.0Hz ~ 999Hz
- Actuator: 1.0Hz ~ 999Hz
