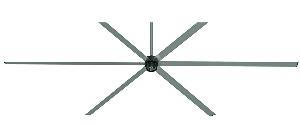

Fan, AirVolution D 780 - 20', 208V-277V

Item Number: EGY06000889 - Supplier: ENERGY LOGIC LLC

Description

Designed for heavy-duty applications, a breakthrough in motor design allows the powerful AirVolution-D 780 fan to generate 75% more wind power. This makes it perfect for extra-large spaces like warehouses, airplane hangars, airports, and stadiums. The fan's durable design also eliminates the gearbox for easy installation, zero maintenance, and operation that's practically inaudible. And to ensure safe and reliable performance, the full line is Wash Down rated for indoor or outdoor use.

Features

  • Airfoil sizes 20 to 24 ft. integrate into any extra large space
  • Airfoils also available in black
  • On-board AirBrain adapts to input voltages, optimizes motor control
  • Integrates into HVAC and other automated building systems via gateway
  • Wash Down Duty rated for outdoor use
  • No gearbox means silent operation, zero maintenance

    Warranty

    50,000 hour warranty.

    • Product Specifications

    • Max Operating Temperature: 140°F
    • Power Source Low Range: 1-phase or 3-phase (208-277) VAC +/- 10%, 50-60 Hz
    • Fire & Sprinkler: NFPA Compliant
    • Wash Down Duty Rating: IP66
    • Number of Airfoils: 6
    • Max Displacement Forward: 250,000 CFM
    • Max Displacement Reverse: 187,000 CFM
    • Motor System Shipping Dimensions: 29 x 30 x 26 in.
    • Motor Shipping Weight: 314 lbs.
    • Blade Shipping Dimensions: 120 x 25 x 15 in.
    • Blade Shipping Weight: 160 lbs.
    • Hanging Weight: 189 lbs.
    • Motor Type: Brushless, Permanent Magnet, Transverse Flux DC
    • Drive Train: Gearless Direct Drive
    • Equivalent Horsepower Rating: 2.1 HP
