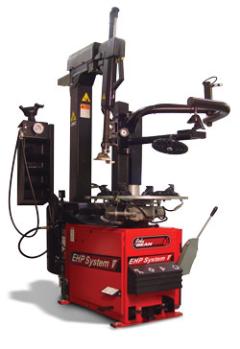

EPH System V Tire Changer

---

Item Number: EEWH517A - Supplier: JOHN BEAN

Description

The EHP System V handles a wide range of high-performance wheel and tire assemblies, including low-profile and run-flat tires. Advanced features, such as pneumatic locking of the mount/demount head offset, provide maximum cosmetic safety for expensive wheels and significantly reduce the risk of wheel or tire damage. The tilt-tower provides maximum clearance for technicians when placing wheel and tire assemblies into position. Pneumatic bead assist is standard.

Features

Ergonomically-Positioned Bead Breaker Control

• Pedal is positioned away from the bead breaker with a guard, preventing the operator from accidentally stepping on and activating it while standing next to the bead breaker

Integrated Pressure Limiter

• Stops air flow once pressure has reached 55 PSI (3.5 Bar), thereby preventing accidental tire over-inflation

Adjustable Four-Jaw Clamp

• Self-centering nylon-covered clamps grip securely and protect the wheel
• Reduced-angle jaws ensure no slippage
• Air inflation jets assist bead seating

Extra Wheel Protection

• Replaceable nylon inserts for demount heads prevent wheel scratching
• Replaceable polymer remount heads are also available for extended protection

Twin-Cylinder Clamping

• Two powerful clamping cylinders provide uniform clamping pressure and increased clamping power

Bead Breaker

• Provides precise power and can be toggled with the foot pedal as needed
• Both the stiffest and the softest sidewalls are a snap
• No damage to tires while loosening the bead

Pneumatic Bead Assist
The standard Pneumatic Bead Assist features a three-piece design with a Top Roller, Pressing Foot, and Lifting Disc. Each piece provides a specialized function that assists a single operator in mounting/demounting low-profile and high-performance tires.

• Assists operator with bead lubrication, wheel clamping, lower bead lifting, re-loosens beads, and allows easy one-operator mounting of the stiff upper bead
• Top Roller:
  - Demounting - Presses down on the tire sidewall, provides clearance for easy positioning of the mount/demount head, upper bead lubrication, and easy insertion of the demount tire lever
  - Mounting - The roller retains the bead under the nose of the mounting head. Works in conjunction with the Pressing Foot to keep the tire bead below the wheel drop center as the tire rotates 360° during the mounting process
• Pressing Foot:
  - Tire Clamping - Presses the wheel in the center hole which allows the lower bead to clear the wheel’s rim for easy clamping
  - Tire Mounting - Presses the upper tire sidewall into the drop center and holds it in place during the 360° rotation required for mounting the upper bead is complete. Allows one-technician operation for mounting stiff sidewall, run-flat and high-performance tires
  - Lifting Disc: Loosens lower beads that often re-seat. To remove the upper bead, the lower bead must be free to move vertically during demounting. Provides an "extra hand" to lift and hold wide tires to facilitate insertion of the demount lever to remove the lower bead
  - For better cosmetic protection of expensive tires and wheels, an optional adjustable bead breaking disc can be fitted to the Pneumatic Bead Assist. This disc allows for breaking the tire beads using 360° tire rotation while the disc gently presses the tire bead dynamically, thus preserving tire and wheel
• Adjustable 2-position bead breaker with robust, anti-skid contact pad and over-sized bead-breaking blade
• Pneumatically-controlled movement of the mounting head toward the wheel
• Mounting column can ben tilted back to increase the space the technician has to maneuver the wheel and tire assembly
• Polymer inserts protect the wheel and prevent clear-coat damage
• Pneumatic Bead Assist Standard
• Pedal-operated inflation

Optional Safety Restraint Arm

• Positively restrains wheel and tire assembly to the tire changer during the inflation process
• Reduces potential for injury by the unlikely event of wheel or tire failure
• Simple swing-arm design easily swings in from the left
• Allows the technician to quickly and safely perform tire inflation without disturbing the tire changing procedure
• Positioning safety interlock switch ensures that the SRA is centered on the wheel and tire assembly before the inflation process can begin
• Anti-Rotation Lock prevents the SRA from moving during the inflation process or in the event of an accidental explosion
• Gravity lock engages automatically without operator intervention and ensures the wheel is secured prior to inflation

Warranty

One Year

Product Specifications

• Maximum Wheel Width: 16"
• Outer Clamping Diameter Range: 12" - 26"
• Bead Breaker Range - Position 1: 2.5" - 12"
• Bead Breaker Range - Position 2: 6" - 16.5"
• Shipping Weight: 1,000 lbs.
• Recommended Floor Space: 72" W x 78" D
• Compressed Air Supply: 110 - 170 p.s.i.
• Inner Clamping Diameter Range: 14" to 28"
• Maximum Wheel Diameter: 47"
• Power Requirements: 120 V, 1 Ph, 60 Hz
• Bead Breaker Power: 3,500 lbs.
