Tire Changer Rim Cap 24" x 15"

Description

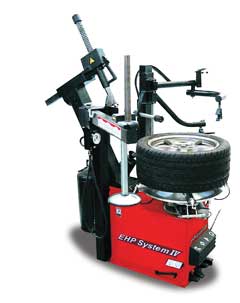

This automatic tilt tower tire changer can handle virtually every wheel available today. Automatic tilt tower units feature automatic pneumatic locking of the rim offset to provide maximum cosmetic safety for expensive wheels. The tilt tower also provides the technician with maximum clearance for placing rims and tires in the mount/de-mount clamping position. Standard is the Pneumatic Bead Assist. The assist function is positioned on the right side, convenient to the technician. Three individual assemblies, a top pressing roller, a bead depressing foot and a lifting disc aid the technician in mounting and de-mounting today’s low aspect and run flat tires. An optional PAX adapter is also available.

Features

• Tilt tower moves out of the when not in use
• Optional Pneumatic powered bead assist for servicing stiff wall and / or low profile tires
• Less wheel slippage with powerful twin cylinder clamping
• Eliminates scratched finishes
• Integrated nylon head inserts
• No rim-contact demount head
• Safer Operation
• Unique safety restraint arm protects operator in case of tire explosion (Ordered separately)
• Tire pressure limiter valve to protect from over inflation
• Better Product Protection/Service
• Reinforced tower construction
• Lifetime lubrication valve
• Water separator/oiler standard
• National service organization support

Product Specifications

• Air Pressure Requirements: 110 to 170 psi
• Shipping Weight: 547 lbs.
• Electrical requirements: 110V, 1 Ph
• Maximum tire diameter: : 40"
• Outside rim capacity: 10" to 24"
• Maximum rim width: 15"
• Bead Breaking Rim Width: 16"
• Bead Breaker Force: 3,300 lbs. @ 170 psi
• Inside rim capacity: 12" to 22"
