Tire Changer Rim Cap 24" x 13"

Description

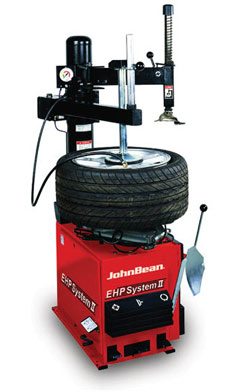

This swing arm style tire changer can handle virtually every wheel available today. Swing arm units feature automatic mechanical locking of the vertical rim offset and a technician positioned large diameter horizontal offset knob to provide maximum cosmetic safety for expensive wheels. The swing arm allows the technician to move the mount/de-mount arm clear of the turntable for maximum clearance for placing rims and tires in the mount/de-mount clamping position.

Features

• Optional Pneumatic powered bead assist for servicing stiff wall and / or low profile tires
• Large adjustable clamping turntable w/outside clamping up to 24"
• Less wheel slippage with powerful twin cylinder clamping
• Eliminates scratched finishes
• Integrated nylon head inserts
• No rim-contact demount head
• Safer Operation
• Unique safety restraint arm protects operator in case of tire (Ordered Separately)
• Tire pressure limiter valve to protect from over inflation
• Better Product Protection/Service
• Reinforced tower construction
• Lifetime lubrication valve
• Water separator/oiler standard
• National service organization support backup

Product Specifications

• Maximum tire diameter: 40"
• Bead Breaking Rim Width: 13"
• Electrical requirements: 110V, 1 Ph
• Outside rim capacity: 10" to 24"
• Air Pressure Requirements: 110 to 170 psi
• Inside rim capacity: 12" to 24"
• Maximum rim width: 12"
• Bead Breaker Force: 3,300 lbs. @ 170 psi
• Shipping Weight: 530 lbs.
