Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued

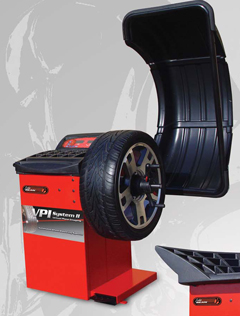

Multi-Featured Stand Wheel Balancer
Item Number: EEWB504A - Supplier: JOHN BEAN
Note: This balancer does not meet minimum requirements as stated in TSB SST 030.
Description
Unique software programming projects a virtual plane out on the end of the balancer shaft to allow imbalance vibrations to be measured on both sides of the wheel for improved accuracy and repeatability!
Features
- Virtual Plane Imaging for improved accuracy and repeatability. (VPI™)
- Automatic distance parameter entry
- Tire and Wheel Diagnostics
- Tone@Top audible beep signaling
- Match balancing mode
- Hidden weight spoke program
- Pedal activated spindle lock
- Wheel Optimization program
- Two window data display
- Divided weights function
- Computer tape weight location program
- 12 weight compartments
- Built-in counter to monitor use / productivity
- Space saving, compact cabinet design
- Fast, easy operator calibration
- Built-in memory for multiple operators (4)
- Super quiet, engineered wheel balancer motor
Includes
- Wing nut
- Captured back spring
- Four hardened centering cones
- Weight hammer/pliers
- Rim width calipers and shaft installation wrench
- Wheel hood is optional
Warranty
OEM Program Three (3) year parts and labor
Product Specifications
- Maximum tire diameter: 44"
- Maximum rim diameter capacity: 8 - 25"
- Shaft diameter: 40 mm
- Motor: 1 hp (Acceleration power)
- Space requirement: 36" x 32"
- Balance Shaft Speed: 100 r.p.m.
- Angular Accuracy: 1-1/2%
- Cycle Time: As low as 6 seconds (16" average tire)
- Number of weight pockets: 14
- Electrical requirements: 115 volt/1 phase/60 Hz
- Maximum rim width: 3 - 20"
- Maximum wheel weight: 120 lbs.
- Imbalance accuracy: 2 grams (.7 oz.)
