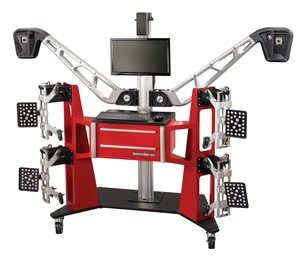

V3300 Wheel Alignment System AC200 Clamps with VIN Scanner

---

Item Number: EEWA552HV - Supplier: JOHN BEAN

Description

With a new notification system that provides critical information without slowing you down, the V3300 wheel aligner puts every alignment on the fast track. The ground breaking user interface provides instant access to critical tasks in an intelligent flow, ensuring vehicle-specific assistance is always just one click away.

The V3300 wheel alignment system's automatic height tracking provides optimum placement of its advanced XD targets and cameras for more speed and more accuracy on every alignment. The V3300 takes up less floor space in the shop and can be moved around easily whenever required.

Features

• Optimized vehicle selection process
  • Quick access to history right on the home screen
  • Clear and comprehensive year / make / model selection
  • Quick model search
  • Manual and scanner VIN select, with live look up feature
• Quick-select language support for procedures and printouts provides rapid changes between commonly used languages
• All new graphic displays with all screens optimized for maximum visibility and clarity
• Next Generation UI Optimized for the High-Volume user
• Diagnostic alignment with "Compensate Warn Alert" intervention gets it right the first time

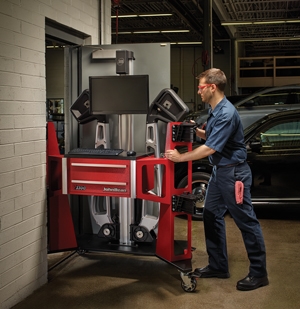

• Unique camera beam design to fit through a standard doorway and protects cameras
• Highly accurate and reliable XD camera technology
• Low profile design, lowers the center of gravity for improved stability when moving
• Fully mobile folding arms
• Lightweight, three-camera system folds to a compact size with a low center of gravity
• Printer compartment
• Easy access clamp storage system
• One-piece mobile system
• Color drive-on camera
• Adjustable monitor height
• John Bean AC200 Touchless Alignment Wheel Clamps with XD Targets
  • Rugged cast aluminum construction
  • Fits rims between 11" - 22"; no limitation on tire diameter
  • 10.9 - 11.5 lbs. per clamp
  • 4" extensions are available as an optional accessory
  • Self centering design enables accurate measurement of vehicle dimensions
  • Two sided claw allows wider clamping options with no extra parts and allow clamping over hubcaps without removal
  • XD targets are lighter and take up less space then previous design

Includes

• EAK0289J86B VIN Scanner
• 00055502000 Steering Wheel Holder
• 00000096000 Brake Pedal Depressor
• EAK0268J05A Color Ink Jet Printer
• (2) Wheel Chocks
• 24" Flat Panel Monitor
• Wheel Clamps with XD Targets

Options

• EAK0268J63A Quick Clamp Kit

Warranty

One year warranty on labor, three years on electronic parts, and one year warranty against defects in material and workmanship on all other (non-electric) parts.

Product Specifications

• Shipping Weight: 544 lbs. (247 kg)
• Tire Diameter: Unlimited
• Track Width: 48" - 96" (1219 - 2438 mm)
• Power Requirements: 100-230V AC (must have Earth ground), 15 amp circuit, 50/60 Hz, UL201, C22.2, CE Approved
• Wheelbase: 79" - 180" (2007 - 4572 mm)
