Discontinued
Superseded to EEWA546P4

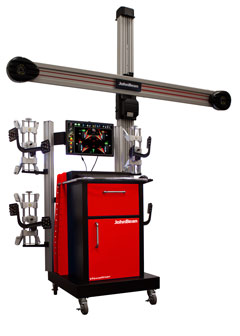

Visualiner 3D2 X-CEL Alignment with Camera Support

Item Number: EEWA546P4M - Supplier: JOHN BEAN

Description

The Visualiner 3D2 Imaging Alignment System with Variable-Height Camera Support uses advanced technology to improve the productivity and performance levels of shops world wide by offering fast alignment, precision measurements and reliable service.

Features

  • EZ-Access (Wheels Off)* - Avoid working around the wheels when making adjustments. Access hard-to-reach adjustment points.
  • Software for Modified Vehicles - Minimize tire wear for vehicles with aftermarket wheels or other modifications.
  • Advanced Vehicle Dimensions - Advanced measurements such as setback, wheelbase, track width, diagonal measurements, and tire diameter are displayed to assist the operator in identifying driveability issues.
  • EZ-Link* - Displays OEM service information related to computer-controlled steering systems.
  • VODI™*- Vehicle Orientation Directional Indicator, guides the technician through the measuring process and reduces the amount of time spent walking back and forth from the vehicle to the aligner console.
  • iShop™, ShopKey™, ASANet™, Mitchell1 compatible - Maintain consistency with OEM specs and access resource libraries.
  • Live 3D Modeling* - Provides accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits.
    *Patented and/or patent-pending features

Includes

  • 00055502000   Steering Wheel Holder
  • 00000096000   Brake Pedal Depressor
  • EAK0289J23A   Remote Control
  • EAK0268J52A   Universal Wheel Clamps and Shatter-proof Imaging Targets
  • EAK0256J71A   Ride Height Target Kit
  • EAA0321J19C   Variable-Height Camera Support
  • Camera Beam Assembly

Options

  • EAK0289J06A   Premium Turntables
  • EAK0277J28A   Paddle Kit for Premium Turntables
  • EAK0277J39A   4-Post Rollback Kit
  • EAK0277J40A   12K Scissor Rollback Kit
  • EAK0277J47A   12K Scissor Roll Forward/Rollback Kit
  • EAK0277J67A   10K/14K Scissor Rollback Kit
  • EAK0277J45A   Hunter/Rotary Rollback Kit
  • 8-05320A        Frame Angle Gauge
  • EAK0268J62A   Universal Wheel Clamp Extension Kit (to 28")
  • EAK0268J63A   Alloy Quick Clamp Kit
  • P-1826           Convex Mirror 36" Wide with Hardware
  • EAK0222J83A   Hub Adapter Kit (Wheel-Off Alignment)
  • EAK0268J08A   Remote Display Readout with 30' Cable
  • EAA0321J01A   Fixed-Height Camera Support
  • EAK0289J36A   Wall/Pit Camera Support (Adjustable 36"-60")
  • EAK0289J63A   Wall/Pit Camera Support (8")
  • EAK0289J64A   Electronic-Tilt Camera System
  • EAK0289J86A   VIN Code Reader
  • EAK0289J91A   Drive-on Camera Aid

Warranty

Three (3) year warranty on parts and labor.

Product Specifications

  • Wheelbase: 79" - 180"
  • Power Requirements: 120/230V, 1 Ph, 60 Hz
  • Wheel Size: 13" - 24"
  • Tire Diameter: Unlimited
  • Track Width: 48" - 96"
