Visualiner 3D2 Imaging Alignment System

Description

The Visualiner 3D2 Imaging Alignment System uses advanced technology to improve the productivity and performance levels of shops world wide by offering fast alignment, precision measurements and reliable service.

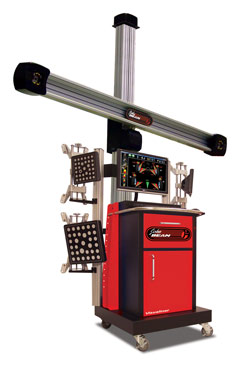

(Shown at right with optional Variable-Height Camera Support. For Visualiner 3D2 Imaging Alignment System that includes the Variable-Height Camera Support, see EEWA546AL22M.)

Features

• EZ-Access (Wheels Off)* - Avoid working around the wheels when making adjustments. Access hard-to-reach adjustment points.
• Software for Modified Vehicles - Minimize tire wear for vehicles with aftermarket wheels or other modifications.
• Advanced Vehicle Dimensions - Advanced measurements such as setback, wheelbase, track width, diagonal measurements, and tire diameter are displayed to assist the operator in identifying driveability issues.
• EZ-Link* - Displays OEM service information related to computer-controlled steering systems.
• VODI™*- Vehicle Orientation Directional Indicator, guides the technician through the measuring process and reduces the amount of time spent walking back and forth from the vehicle to the aligner console.
• iShop™, ShopKey™, ASANet™, Mitchell1 compatible - Maintain consistency with OEM specs and access resource libraries.
• Live 3D Modeling* - Provides accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits.
  *Patented and/or patent-pending features

Includes

• 00055502000   Steering Wheel Holder
• 00000096000   Brake Pedal Depressor
• EAK0289J23A   Remote Control
• EAK0268J52A   Universal Wheel Clamps and Shatter-proof Imaging Targets
• EAK0256J71A   Ride Height Target Kit
• Camera Beam Assembly

Options

• EAK0289J06A   Premium Turntables
• EAK0277J28A   Paddle Kit for Premium Turntables
• EAK0277J39A   4-Post Rollback Kit
• EAK0277J40A   12K Scissor Rollback Kit
• EAK0277J47A   12K Scissor Roll Forward/Rollback Kit
• EAK0277J67A   10K/14K Scissor Rollback Kit
• EAK0277J45A   Hunter/Rotary Rollback Kit
• 8-05320A        Frame Angle Gauge
• EAK0268J62A   Universal Wheel Clamp Extension Kit (to 28")
• EAK0268J63A   Alloy Quick Clamp Kit
• P-1826           Convex Mirror 36" Wide with Hardware
• EAK0222J83A   Hub Adapter Kit (Wheel-Off Alignment)
• EAK0268J08A   Remote Display Readout with 30' Cable
• EAA0321J19C   Variable-Height Camera Support
• EAA0321J01A   Fixed-Height Camera Support
• EAK0289J36A   Wall/Pit Camera Support (Adjustable 36"-60")
• EAK0289J63A   Wall/Pit Camera Support (8")
• EAK0289J64A   Electronic-Tilt Camera System
• EAK0289J86A   VIN Code Reader
• EAK0289J91A   Drive-on Camera Aid

Warranty

Three (3) year warranty on parts and labor.

Product Specifications

• Tire Diameter: Unlimited
• Track Width: 48" - 96"
• Wheelbase: 79" - 180"
• Power Requirements: 120/230V, 1 Ph, 60 Hz
• Wheel Size: 13" - 24"
