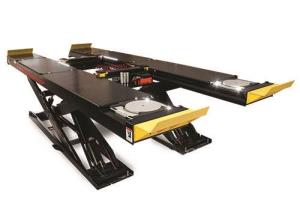

14K Locked and Lighted Scissor Alignment Lift, Flush Mount

---

Item Number: EELR594APKG - Supplier: JOHN BEAN

Description

John Bean Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to five scissor lifts to fit into the same operating space as four 4-post lifts. Locked and Lighted models provide productivity enhancements while allowing the technician to perform critical tasks while minimizing alignment process operations, by illuminating both inspection and adjustment areas and by sequencing the locking of alignment plates.

Features

• 14,000 lb. lifting capacity
• Open front and rear access between lifting platforms
• Low profile height with long approach ramps easing drive on
• Wide drive on runway platforms improves ease of vehicle positioning
• Recessed front turn plate pockets and full floating rear slip plates give a uniform surface for alignment
• Maintenance reduced rear slip plates use oversized encapsulated bearings, roll upward protected from environment debris
• Re-enforced scissor / base structure and runway platforms improves alignment accuracy
• Multi-position work step provides comfortable under hood access
• 4 hydraulic cylinders, cross aligned arrangement provides secure lift power and added safety
• Contained top and bottom durable steel re-enforced glide blocks deliver smooth lift operation
• Up to 18, level locking locations improves ergonomic working positions
• Approach ramps are equipped with end sliders minimizing noise and reducing floor damage
• Adjustable maximum lift height, suiting locations with low ceilings
• Safety systems include:
  • Mechanical locking with pneumatic safety lock release form control console
  • Flow sensing valves in hydraulic control circuit
  • Redundant hydraulic safety system with cross aligned hydraulic circuits
  • Integrated hydraulic fuse protection, preventing inadvertent lowering in the event of a hydraulic line leak
  • Lock pins to secure against slip plate movement when loading/unloading vehicles
  • Wheel chocks, front wheel stops and self-activating rear wheel stop preventing roll offs
  • On models equipped with patented Locked and Lighted front turn plates and rear slip plates
    • On auto on/off Light feature ensuring no power when operation through hazard zones
    • Pneumatic locking of front and rear slip plates, with unloaded return to center feature
• Integrated air kit allows unrestricted clear access for operation of rolling jacks
• On-board FRL; (Filter, Regulator, Lubricator) provides clean and lubricated air, reducing maintenance and protecting pneumatic
• Locked and Lighted equipped models:
  • Have ease locking control activation form the lift control console, reduces walking and effort from resetting alignment pins in plates
  • Locking components are made from corrosion resistant materials
  • Lighted units, illuminate alignment adjustment and calibration areas with energy efficient LED’s, giving a wide viewing area of clean white light
  • Front LED’s are mounted in the front turn plate base easily accommodating varying vehicle wheel tracks
  • Rear LED’s are strategically positioned on the flush mounted rear slip plates auto on/off Light feature ensures no power when operating through hazard zones
• All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011

Includes

• Complete 14K scissor Console / LL console
• Work Step
• 14K Steel Line Cover Kit
• 2 Rolling Jack Beams, EELS904A
• Premium Templates, EAK0289J06A
• Rollback Paddle Kit, EAK0277J28A

Warranty

One year

Product Specifications

• Air Supply Requirements: 90-140 PSI @ 5-10 CFM
• Maximum Lifting Height: 72" (183cm)
• Overall Height: 72" (183cm)
• Configuration: Open Front and Rear
• Base Width: 32-1/4" (819 mm)
• Adapter Length Range: 36-3/4" to 43" (921 mm to 1092 mm)
• Minimum Pad Height Arm Extended: 2-9/16" (65 mm)
• Minimum Drive Over Height With Pad Arm Retracted: 1-7/8" (47.5 mm)
• Maximum Arm Reach for Jack Beams: 57-1/8" (1450 mm)
• Minimum Arm Reach for Jack Beams: 35-7/16" (900 mm)
• Power Requirements: 230V, 60Hz, 1Ph, 20A, 2HP (1.5kW)
• Lifting Capacity: 14,000 lbs. (6,350 kg)
• Overall Width: 93" (235 cm)
• Overall Length: 256.19" (6507 mm)
• Minimum Lowered Height: 10" (254 mm)
• Runway Width: 26" (660 mm)
• Width Between Runways: 39" (990 mm) - 40" (1016 mm)
• Four-Wheel Alignment Wheelbase: 88" (2235 mm) - 155" (3937 mm)
• Two-Wheel Alignment Wheelbase: up to 165" (4191 mm)
• General Service Wheelbase: up to 179" (4547 mm)
• Lifting Time: 85 seconds
• Maximum Operating Pressure: 4600 PSI (31.7 MPa)
• Pneumatic Filtration Oil Type: Snap-on # IM6 or Equivalent
• Hydaulic Oil Capacity: Tank Size: 4.0 gal. (15L) / Lift Capacity: 6.0 gal. (22.7L)
• Hydraulic Oil Type: ISO 32 (10 weight) non-foaming and non-detergent hydraulic oil
• Console Dimensions: 16.37" x 12" x 45-3/4" (420 x 307 x 1162 mm)
